1669851, Phoenix Contact Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 1.5m, Кабельная сборка

Sensor / Actuator Cable, M12 Socket with Open Cable End

Sensor / Actuator cable — various cable lengths
Flexible adjustment with open cable end
Mount using the plug from the SACC range

SAC-5P Sensor/actuator cable - 1669851

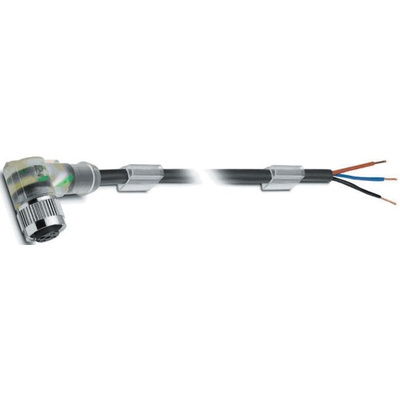

The 1669851 from Phoenix Contact is an M12 right-angled sensor/actuator cable. This cable is an open-ended sensor cable that has 5 positions and is PUR halogen-free. The M12 connector has a coding of A and with this cable being open-ended, it allows you to connect any other coding connector to the other side, providing it's 5 positions. The 1669851 is back by an IP68 rating (with a dust cap) and is a total length of 1.5m. This provides you not only enough reach for the majority of applications, but the possibility to use this in harsh conditions.

The open-end of the sensor cable comes pre-stripped at a length of 50 mm, making it even more fluent for you to connect it to another connector.

Features and benefits:

• Standard A-coded head


• Maximum protection of an IP68 rating - providing you have a dust cap


• PUR halogen-free black cable


• 5 Position, M12 connector


• Can be mounted using the plug from the SACC range
