1201714, Phoenix Contact Steel Unperforated DIN Rail, Top Hat Compatible, 2m x 35mm x 15mm

Phoenix Contact DIN Rails

The Phoenix Contact range of steel, NS 35 DIN Rails are designed to be used for mounting various electrical and industrial equipment. The DIN Rails are manufactured from cold rolled steel which is then zinc coated and clear passivated. This ensures its strength and corrosion proof properties. Available in various lengths and slotted and un-slotted (perforated) profiles for easy attachment and wiring.

What is DIN Rail?

DIN Rail is a metal rail used to mount electrical, pneumatic and hydraulic components in control cabinets, enclosures racks and panels. DIN Rail is manufactured to conform to a specific set of standards outlined by the Deutsch Institute von Normen (DIN). Due to the uniform profile, it ensures components can be sourced from several different manufacturers and suppliers, safe in the knowledge all products can be mounted on the same rail.

Why should you use Phoenix Contact Top Hat DIN Rail?

Using the Phoenix Contact DIN rail enables you to mount your electrical components safely and securely. It provides a central location where wiring can be connected and maintained quickly and efficiently.
• Saves space – DIN rail terminals and smaller DIN mounted components can be packed into smaller spaces.
• Saves time - DIN mounted components easily slide or snap onto the rail. Relays, timers, circuit breakers and similar products can also be mounted into compatible bases for rapid connection.
• Saves money – DIN rail provides a cost-effective solution as it allows for a higher density of component mounting, which reduces wiring cost and enclosure space.

Features and Benefits

• Industry standard symmetrical rails
• High level of dimensional accuracy
• Slotted and un-slotted variations
• Lengths available from 755mm to 2m
• Conforms to EN60715 European standards

Typical Applications

The NS35 DIN rail is used in a wide variety of industrial applications. Some of the most common are

• DIN rail terminal blocks
• Power supplies
• Plug in relays
• Timer modules
• Panel meters
• I/O devices
• Robotics
• Automation and control devices

Standards

DIN 607015

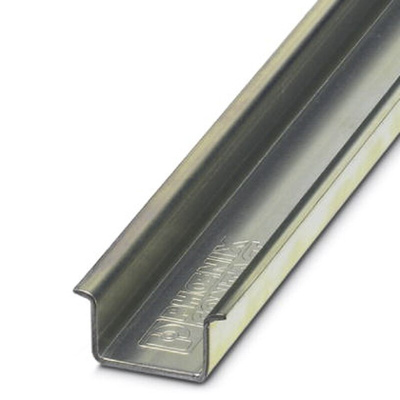

Phoenix Contact DIN Rail, Steel, Top Hat - 1201714

This Phoenix Contact DIN rail is an unperforated steel rail with a width of 35mm. Designed with precision and durability in mind, this rail provides a reliable solution for various applications in automation, electronics, electrical, and mechanical industries. The 2 metre length ensures flexibility and adaptability to different setups.

Features & Benefits

• Unperforated design ensures secure installation and compatibility with top hat fittings
• Made from high quality steel for strength and longevity
• Standard profile with a width of 35mm and a height of 15mm, conforming to EN 60715
• Galvanised, passivated steel construction with a thick layer for corrosion resistance
• 2 metre length offers ample space for equipment mounting
• Suitable for a wide range of applications in automation, electronics, and electrical industries

Applications

• Ideal for use in control panels, switchgear, and electrical enclosures
• Suitable for mounting various components such as terminal blocks, relays, and circuit breakers
• Perfect for creating organised wiring setups in industrial environments

Will it provide reliable support for heavy-duty equipment?

Yes, the steel construction ensures strong and stable support for a wide range of industrial components.

Is it suitable for outdoor installations?

Yes, the galvanised and passivated steel material makes it suitable for both indoor and outdoor use.

Can it be customised to specific lengths?

This DIN rail is available in a standard 2-metre length, but it can be easily cut to desired sizes for customization.
