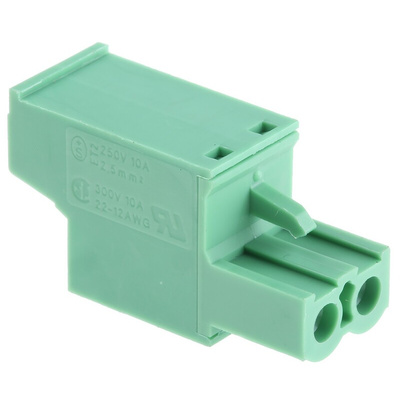

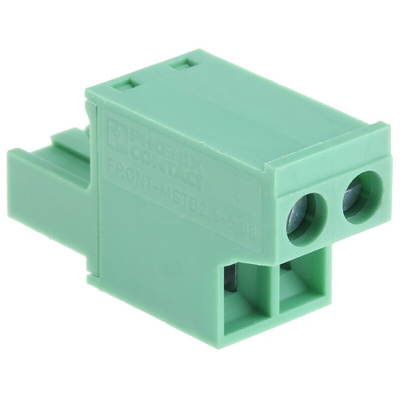

1777280, Phoenix Contact 5.08mm Pitch 2 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON SMSTB & FRONT-MSTB 5.08mm Terminal Block Plug Connectors

CLASSIC COMBICON SMSTB 2.5 & FRONT-MSTB 2.5 cable mount plug-in terminal block connectors, 5.08 mm pitch with a 0.2 - 2.5 mm² screw connection.

Features and Benefits

• Well-known connection principle allows worldwide use
• Optimized for tight installation situations: operation and conductor connection from one direction
• Low temperature rise, thanks to maximum contact force
• Allows connection of two conductors
• Plug units with front screw connections (plug direction parallel to cable axis)
• RoHS compliant

Note

Manufacturer part numbers prefixed with 1874, 18262 and 18263 have a 45° wire entry (SMSTB 2,5 - ST), prefixed with 1971 have a 45° wire entry and a screw mounting flange (SMSTB 2,5 - STF), prefixed with 17772, 17773 and 17774 have a front screw connection and a horizontal wire entry (FRONT-MSTB - ST).

Phoenix Contact PCB Terminal Block, 5.08 mm Pitch - CLASSIC COMBICOM MSTB - 1777280

To transfer power to and from a printed circuit board (PCB), use this PCB terminal block from Phoenix Contact. Its compact design lets you quickly fit it into tight spaces such as automotive control units and telecoms equipment. To save further space, the connection and operation are on the same side, meaning you can install the unit even in areas that are hard to access.
The front screw connection helps you achieve a secure fit without the need for specialised tools. Maximum contact force ensures there's a large surface area to release heat, so you don't have to worry about rising temperatures in your electrical components.
The versatile PCB connectors in the CLASSIC COMBICON series use a standard connection principle for global applications. They're an essential component in communications, lighting and security applications.

• Current rating of 12 A
• Voltage rating of 320 V
• Unfused
• Female connector
• Nylon material
• Cable-mount mounting type
• 2-way
• Screw-down termination method
• Pitch of 5.08 mm
• Wire sizes of 12 to 24 AWG (American Wire Gauge)

Approvals

UL, CUL, CSA
