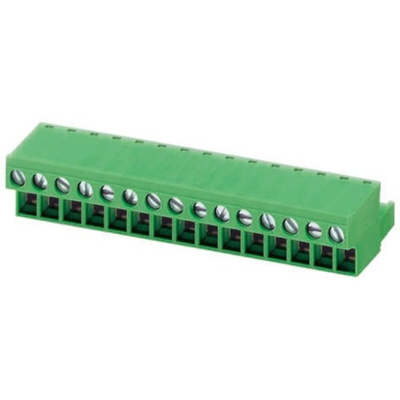

1777345, Phoenix Contact 5.08mm Pitch 8 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON SMSTB & FRONT-MSTB 5.08mm Terminal Block Plug Connectors

CLASSIC COMBICON SMSTB 2.5 & FRONT-MSTB 2.5 cable mount plug-in terminal block connectors, 5.08 mm pitch with a 0.2 - 2.5 mm² screw connection.

Features and Benefits

• Well-known connection principle allows worldwide use
• Optimized for tight installation situations: operation and conductor connection from one direction
• Low temperature rise, thanks to maximum contact force
• Allows connection of two conductors
• Plug units with front screw connections (plug direction parallel to cable axis)
• RoHS compliant

Note

Manufacturer part numbers prefixed with 1874, 18262 and 18263 have a 45° wire entry (SMSTB 2,5 - ST), prefixed with 1971 have a 45° wire entry and a screw mounting flange (SMSTB 2,5 - STF), prefixed with 17772, 17773 and 17774 have a front screw connection and a horizontal wire entry (FRONT-MSTB - ST).

Phoenix Contact PCB Terminal Block, 5.08 mm Pitch - FRONT-MSTB 2,5/ 8-ST-5,08 - 1777345

This printed circuit board (PCB) terminal block from Phoenix Contact is built to easily and reliably transmit signals, data and power from a PCB. The female connector has eight terminal points, with a pitch distance of 5.08 mm between each. Screw connections achieve a tight and secure fit without the need for specialised tools.
As the connector accepts wire sizes of 24 to 12 AWG (American Wire Gauge), it's a versatile choice. You can connect two wires of the same cross-section at the terminals. Robust nylon construction with tin contact surfaces ensures a long life with good protection from oxidation and corrosion. For easy installation in tight spaces, the cable and plugs are set in parallel – operation and connections are on the same side. High contact forces make sure that your electrical components are kept cool.
This unit has a fire safety rating of UL (Underwriters Laboratory) 94 V-0, meaning it stops burning within 10 seconds.

• Not fused
• Nylon material
• Cable mounting type
• Screw-down termination method
• Current rating of 12 A
• Voltage rating of 250 V
• Weight of 23.1 g
• Overall dimensions of 27.2 (length) x 40.64 (width) x 14.9 mm (height)

Approvals

UL, CUL, CSA
