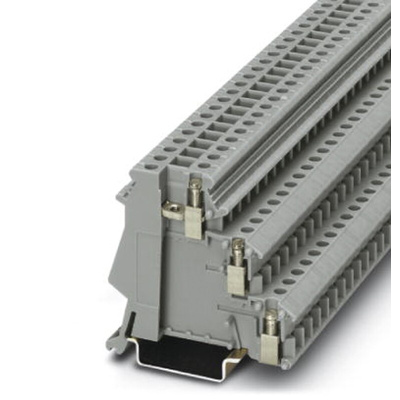

2715966, Phoenix Contact DIK 1.5 Series Grey Non-Fused DIN Rail Terminal, 2.5mm², Triple-Level, Screw Termination

Phoenix Contact Multi-level terminal Blocks

A range of multi-level terminal blocks from Phoenix Contact for the rational wiring of modern machine controls.
The terminal blocks are designed for mounting on flat top hat rail to DIN EN 50 022.

Features and Benefits

• All three wires in parallel on one terminal with the three-level initiator terminal
• Through-terminal for signal flow in top level
• Single-ended terminal locations for positive and negative connections in middle and lower level
• PE connection in lower level with the three-level actuator terminal

Approvals

UL, CUL, CSA

Phoenix Contact DIN Rail Terminal Block, 24A Current Rating, 250V Voltage Rating - DIK 1.5 - 2715966

Safely distribute power to your sensor or actuator with this terminal block from Phoenix Contact. It attaches to your DIN rail, so installation is quick and easy. Tighten it with screws in the M3 threaded terminals to keep it fixed in place and resistant to industrial vibration. Once installed, you can wire the block to a power supply and connect it up to your sensor/actuator device to communicate digital information to process controls and other industrial automation applications.
The unit's robust PA housing material protects against impact shock and abrasion damage. It has built-in Category III surge voltage protection so it doesn't need additional surge suppressors to operate safely.
The terminal block has three connection levels parallel to one another for a simplified setup. The through-terminal controls signal flow in the top level, while the middle and lower level take positive and negative connections, with the protective earth connections in the lower level.

• Flame-retardant behaviour stops vertical burning within 60 seconds to maximise safety
• Accepts wire sizes between 24 and 12 AWG for versatile installation options
• 24A current rating for compatibility with mid-level data transferral
• Maximum tightening torque of 0.6Nm to keep the fitting secure

Sensor-Actuator Terminal Block

6486955_Line Drawing
