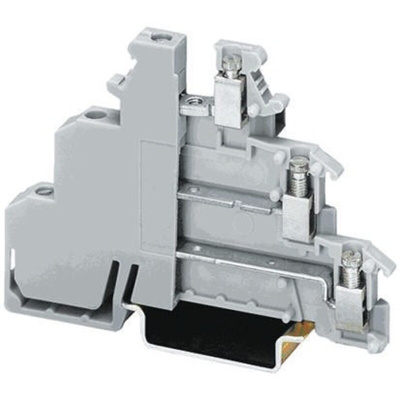

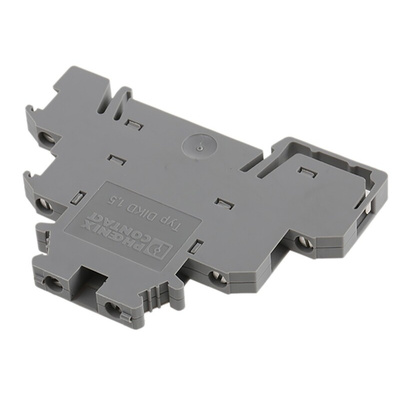

2715979, Phoenix Contact DIKD 1.5 Series Grey DIN Rail Terminal Block, Triple-Level, Screw Termination

Phoenix Contact Multi-level terminal Blocks

A range of multi-level terminal blocks from Phoenix Contact for the rational wiring of modern machine controls.
The terminal blocks are designed for mounting on flat top hat rail to DIN EN 50 022.

Features and Benefits

• All three wires in parallel on one terminal with the three-level initiator terminal
• Through-terminal for signal flow in top level
• Single-ended terminal locations for positive and negative connections in middle and lower level
• PE connection in lower level with the three-level actuator terminal

Approvals

UL, CUL, CSA

Phoenix Contact Power Terminal Block, 24A, 250V AC/DC - DIKD 1.5 - 2715979

Protect sensors or actuators from overcurrent and surges with this terminal block from Phoenix Contact. It allows you to connect 3-wire sensors and actuators with one component. When used with jumpers, the unit handles both the distribution of power and common signals to reduce the complexity of your wiring.
Durable polyamide housing offers impact resistance as well as electrical insulation to protect operators from electric shocks. The screw connection method ensures a strong hold that won't shake loose, even in the event of heavy vibrations. With space-saving dimensions of 72.5 (length) x 6.2 (width) x 62mm (height), the unit allows for improved packing efficiency in crowded control cabinets.
This terminal block is suitable for general power applications, such as lighting control systems. It's also a good choice for telecommunication and process control applications.

• Accepts wires ranging in diameter from 24 to 12AWG (American Wire Gauge) for versatility
• Meets DIN EN 60216-1 (German Institute for Standardisation/European Norm) thermal endurance standards for use in extreme temperatures
• Rated surge voltage of 4kV for protection against power surges
