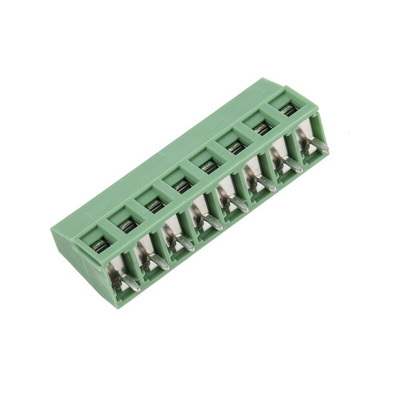

1715789, Phoenix Contact MKDS 1.5/ 8-5.08 Series PCB Terminal Block, 8-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Block, Linear Pin Layout, 4kV Rated Surge Voltage - MKDS 1,5/ 8-5,08 - 1715789

Need a safe way to send signals from cables to your circuit board? Go for this PCB terminal block from Phoenix Contact. Its copper contacts are highly conductive, giving you a reliable connection. The durable PA housing comes in standard green for easy identification and doubles as insulation to protect you from contact with live parts. This reduces the risk of electric shocks and boosts workplace safety.
Wave soldering gives you a secure link to your circuit board, which holds firm even in vibrating systems. The unit's 17.5A current rating makes it the right choice for medium-duty applications. To prevent short circuits, it has a pitch of 5.08mm between its contacts so they don't touch each other. Screw terminals make it easy to link wires to the block, as all you need is a simple screwdriver. You'll find devices like this used in the telecommunications industry.

Features & Benefits

• Accommodates wire sizes ranging between 26 and 14AWG for versatility
• Contacts are tin-plated for corrosion resistance, ensuring long-term service
• UL 94-V0 rating shows it's flame resistant as it stops burning in 10 seconds or less in the event of a fire

Approvals

UL, CSA

Approvals

UL (E60425); CSA (LR13631)

PCB Terminal Block 8P 17.5A

Line Drawing - 1715789
