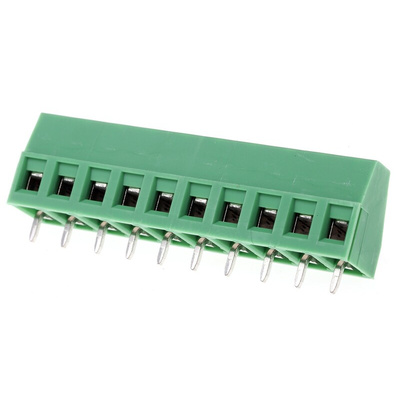

1715802, Phoenix Contact MKDS 1.5/10-5.08 Series PCB Terminal Block, 10-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact COMBICON MKDS 5.08mm PCB Terminal Blocks

The MKDS PCB terminal blocks are through hole mount, have a 5.08 mm pitch, rising cage clamp screw terminals and side interlocking.

Features and Benefits

• Well-known connection principle allows worldwide use
• Low temperature rise, thanks to maximum contact force
• Allows connection of two conductors
• Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
• Latching on the side enables various numbers of positions to be combined
• RoHS compliant

Note

Stock number 804-4991 has the postion number stamped on the housing and 883-2921 is bridged internally.

Standards

Connection in acc. with standard EN-VDE, V0 Flammability rating according to UL 94, DIN EN 60512-5-2:2003-01.

Approvals

CSA, cRUus, PCT, SEV, CCA,

Approvals

UL, CSA

Approvals

UL (E60425); CSA (LR13631)

PCB Terminal Block 10P 17.5A
