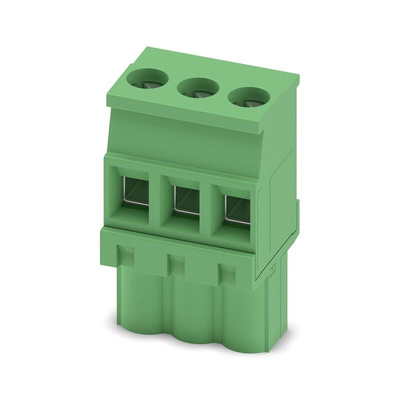

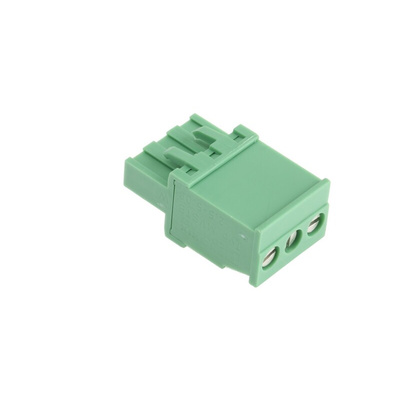

1792760, Phoenix Contact 5.08mm Pitch 3 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Down Termination

6487964
Номер производителя: 1792760Производитель: Phoenix Contact
Цена за шт.
1158.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact CLASSIC COMBICON MVSTBR & MVSTBW 5.08mm Plug-in Terminal Block Connectors

The MVSTBR and MVSTBW series of PCB connectors are from the series 'CLASSIC COMBICON' and feature and 5.08mm pitch and a 0.2mm² to 2.5mm² screw connection terminal. Screw connections provide a strong connection and an easy install and also have a low-temperature rise thanks to the maximum contact force. Rated at 12 A, these PCB connectors will be suitable for most applications and they also have a well-known connection principle that allows you to incorporate these into designs to be used worldwide.

Housings are made from a strong polyamide material with Cu (Copper) alloy contacts.

Features and benefits:

  • Universal 5.08mm pitch

  • Well known connection principle allows for worldwide use

  • Easy screw connection with tension sleeves

  • Allows connection of two conductors

  • Connectors come in various positions ranging from 2 to 24 way

  • Once mated, allows for effortless push-in connection to PCB blocks

Applications:

The MVSTBR and MVSTBW series can be used in the below applications, but are not limited to:

  • Control wiring

  • Instrumentation

  • Control and measurement

  • Industrial electronics

Phoenix Contact MVSTBW 2.5/ 3-ST-5.08 Series Pluggable Terminal Block, Tin Contact Plating, 12A - 1792760

This pluggable terminal block by Phoenix Contact, with a vibrant green colour, provides a reliable solution for various applications in automation, electronics, electrical, and mechanical industries. The screw down connection method ensures secure connectivity, while the tin plated contacts enhance conductivity. With a current rating of 12 A and a voltage rating of 320 V, this terminal block is ideal for a wide range of projects.

Features & Benefits

• Nylon material for durability
• Tin contacts plating for enhanced conductivity
• Cable Mount for easy installation
• Current rating of 12 A for efficient power transmission
• Voltage rating of 320 V for versatile applications
• 5.08 mm pitch for precise connections

Applications

• Ideal for use in PCB connections
• Suitable for power distribution applications
• Perfect for industrial automation systems

Can it be used for high-power applications?

Yes, the Phoenix Contact pluggable terminal block is suitable for applications requiring a current rating of up to 12 A.

Will it work well in industrial settings?

Yes, this terminal block is designed to meet the demands of industrial automation systems, ensuring reliable performance.

Is it easy to install on a PCB?

Yes, the cable-mount design allows for easy installation on printed circuit boards, making it a convenient choice for various projects.

Approvals

UL, CUL, CSA

Техническая спецификация
pdfDatasheet
pdfLine Drawing - 1792760
Кол-во контактов:
3
Количество рядов:
1
Концевая заделка:
Нажимной винт
Материал:
Нейлон
Материал контактов:
Медный сплав
Номинал тока:
12A
Номинальное напряжение:
320 В
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Серия:
MVSTBW 2.5/ 3-ST-5.08
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
5.08мм
