1935394, Phoenix Contact COMBICON PT Series PCB Terminal Block, 10-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact COMBICON PT 5.0mm PCB Terminal Blocks

A range of COMBICON Compact PCB Screw Terminal Blocks in the PT 1.5 and PT 2.5 Series with 5.0 mm pitch.

Features and Benefits

• High terminal block capacity, thanks to rectangular terminal block space
• 5.0 mm pitch
• Highly flexible conductor protection for easy, repeated connecting
• Rugged design for larger cross sections or high current carrying capacity
• Plus/minus screw
• PT 1.5 types accept solid and flexible wires of 0.2 mm² to 2.5 mm² (26-14 AWG) and are rated at 20 A/250 V max
• PT 2.5 types accept solid and flexible wires of 0.5 mm² to 4.0 mm² (20-10 AWG) and are rated at 32 A/250 V max
• PCB hole diameter 1.3 mm
• Flammability rating UL 94V-0

Standards

DIN EN 60512-5-2:2003-01.

Approvals

UL, CUL, CSA, PCT, VDE, CCA.

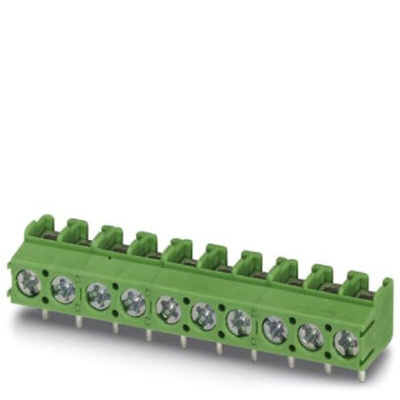

Phoenix Contact PCB Terminal Block, 5mm Pitch, 10 Way - PT 1.5/10-5.0-V - 1935394

Safely transmit power and signals to electrical systems with this PCB (printed circuit board) terminal block from Phoenix Contact. It supports voltages up to 250V and has a current rating of 16A, so it's suitable for a range of high-power applications.
Compact dimensions make this block easy to install in small spaces, and its rectangular design gives it plenty of capacity. Thanks to 10 position slots, you can connect many cables to the PCB at the same time. A 5mm pitch ensures safe spacing between wires and prevents short circuits.
Signature green thermoplastic housing provides insulation from electric shock and low temperature rise ensures your PCB won't overheat. The block's screw-type termination method means you don't need complex equipment to secure wires. Units like this are widely used in industrial applications where safety and energy conservation are key.

• Right-angle body orientation to maximise use of space
• Not fused for flexible setups
• Standard wire size of 26 to 14AWG (American Wire Gauge)
• Secure installation by through-hole mounting
• Complies with IEC (International Electrotechnical Commission) 60947-1 standards, which ensure a safe and reliable component
• Underwriters' Laboratories (UL) 94V-0 flammability rating means that burning stops after 10 seconds

Approvals

UL, CUL
