3118203, Phoenix Contact UK 6-FSI/C Series Black Fused DIN Rail Terminal, Single-Level, Screw Termination, Fused

Phoenix Contact Flat-Type Fuse Terminal Block

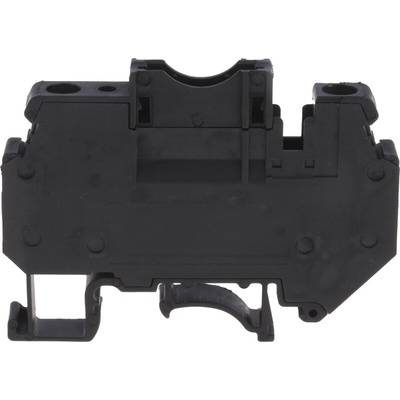

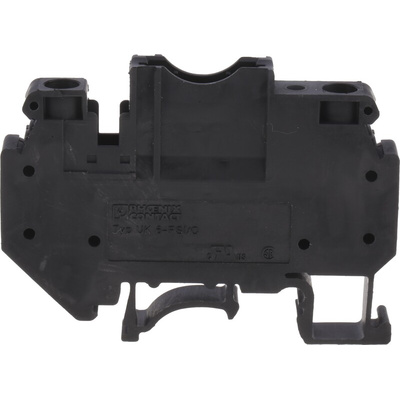

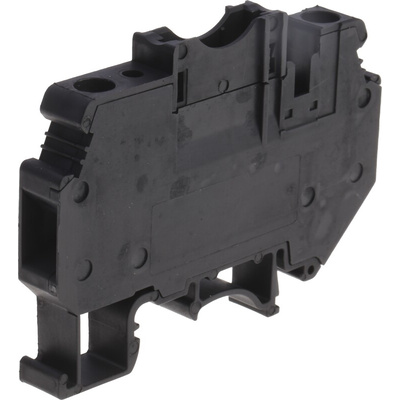

UK 6-FSI/C is a single tier terminal block equipped with a location for flat-type fuses. The black polyamide (PA) terminal block has 2 connections and a maximum load current of 30A.

Note

Nominal voltage and current:
- In accordance with CSA: 30 A @ 32 V
- In accordance with UL: 30 A @ 300 V

Phoenix Contact Flat-Type Fuse Terminal Block, 250V, 30A - UK 6-FSI/C - 3118203

Use this modular terminal block from Phoenix Contact contact to efficiently and safely connect your wiring. The component has a flat fuse that protects against electrical overload, providing optimum protection. It's insulated with polyamide (PA) material that provides optimal electrical resistance and reliable protection. Thanks to a voltage rating of 250V, it's an ideal choice for use with a wide range of medium-power applications.
This component has an Underwriters' Laboratory (UL) fire safety rating of UL94V-0 to indicate that in the event of a fire, burning will stop within 10 seconds. It has a surge voltage rating of 4kV and offers the ability to withstand voltage spikes and surges for additional electrical protection. This block has a small to medium American wire gauge (AWG) wire size of 26 to 8, making it space-efficient and suitable for carrying high electrical power.

• Light weight of 19.5 g for easy handling and minimal system strain
• Screw termination method for quick and easy installation
• Long-term environmental use safety period of 50 years
• Wide temperature range of -60°C to +130°C for use in demanding environments
