1523434, Phoenix Contact Straight Female 4 way M12 to Sensor Actuator Cable, 500mm, Кабельная сборка

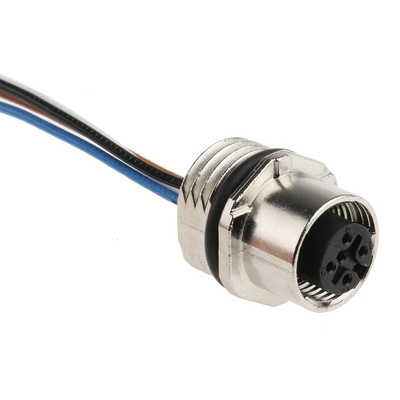

M12-SPEEDCON sockets with cables

Phoenix Contact brings you a high quality and brilliant range of M12 sockets. The SPEEDCON series are panel mounted and include TPE litz wires on the socket, so you can use this socket immediately. SPEEDCON sockets are also a sealed unit so that it has optimum leak protection. Not to mention, SPEEDCON features a fast locking system that will reduce you cabling time.

SPEEDCON sockets all come in a standard pin assignments and coding's for signal, data and transmissions with a uniform design-in design.

Features and Benefits:

• M12 panel size and designed for use in panel mount scenarios.


• Quick locking system to reduce your cabling time


• Strong nickel-plated zinc alloy body for brilliant durability

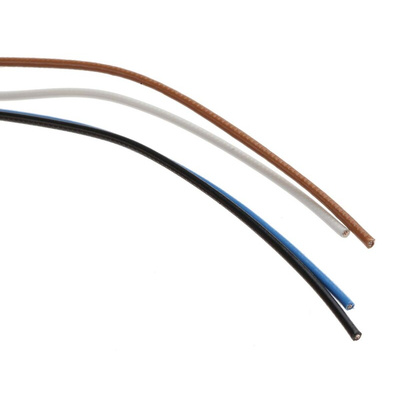

• Coloured wire lead connection (0.5 metre and cross section 0.25 mm²)


• IP67 rating backed by an insulated contact side (sealed with polyamide 66)


• Operation temperature of -25°C up to +85°C


• M16 flat thread for precise socket positioning

Applications:

• Industrial


• Sensors

Accessories:

M16 Flat nut – 802-5498

Phoenix Contact Sensor Actuator Cable, 4A, IP67 - 1523434

This Phoenix Contact sensor actuator cable is designed to meet the demands of the automation, electronics, electrical, and mechanical industries. With a cross sectional area of 0.34 mm², 22 AWG, and a length of 500mm, this cable is ideal for various applications where reliability and performance are essential.

Features & Benefits

• M12 female connector cable for easy and secure connections
• 4A Current rating cable ensures safe and efficient power transmission
• IP67 Rated cable, providing protection against dust and water ingress
• A Coded connector cable for proper identification and compatibility
• 250V voltage rating cable for versatile applications
• Operating Temperature Range from 25 to +85°C for reliable performance in diverse environments

Applications

• Ideal for sensor and actuator applications
• Suitable for use in automated systems
• Perfect for electrical installations in harsh conditions
• Used for data transmission and power supply in industrial settings

Can it withstand extreme temperatures?

Yes, the Phoenix Contact sensor actuator cable can operate in temperatures ranging from -25 to +85°C.

Will it provide a secure connection?

Yes, the M12 female connector cable ensures a reliable and safe connection.

Is it suitable for industrial applications?

Yes, this cable is designed to meet the demands of industrial settings with its robust construction.

Datasheet 1523434

Instruction Sheet - SACC-E Series

Line Drawing - 1523434
