2708863, Phoenix Contact 3RS7005 Series Signal Conditioner, Current, Voltage Output, 24V dc Supply, ATEX, IECEx

Repeaters

Repeaters that enable separation of potential and increased range of PROFIBUS systems up to12 Mbits / s or RS 485 bus 2-wire systems up to 50 kbits / s.
Supply: 24 Vdc
Operating temperature: -20 °C → 60 °C.
DIN rail assembly.

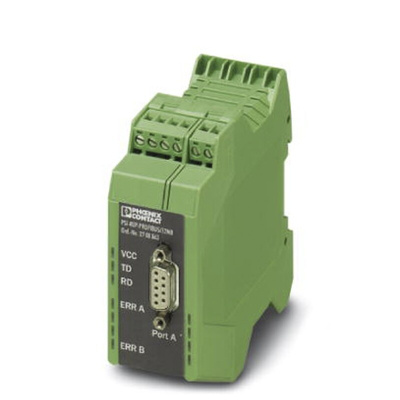

Phoenix Contact Repeater, 60V AC, 42V DC - PSI-REP-PROFIBUS/12MB - 2708863

This repeater from Phoenix Contact's PSI series is used in radio signalling when a physical obstruction impedes a signal and prevents radios from communicating. It allows obstructed radio signals to communicate at another point for greater ease of transmission. It has a DIP (dual in-line package) switch for moving between an automatic data rate detection mode and a fixed data rate mode, making it a versatile choice.
The device lets you multiply network coverage and extend the number of devices to which you transmit signals for enhanced efficiency. It also provides four-way electrical isolation between interfaces to prevent interference that could undermine the quality of the transmission. For greater electrical safety, it's also protected against short circuits.

Features & Benefits

• Suitable for DIN rail mounting for ease of installation
• Distinctive Phoenix Contact green colour lets you identify it easily in a complex set-up
• High data transfer rate of up to 12Mbps (megabits per second) for reliable performance
• Wide operating temperature range of -20°C to +60°C means it's suitable for use in harsh environments

Datasheet - 2708863
