2864370, Phoenix Contact 3RS7005 Series Signal Conditioner, RTD Input, Current, Voltage Output, 24V dc Supply

Temperature converters configurable for PT100

Converters for Pt 100 probe dip switch adjustment assembly.
0 to 10 V output or 0 (4) at 20 mA.
Voltage insulation from external power supply.
Compact format for mounting onto 6.2 mm thick DIN rail.
Connected with screws or terminal connectors (-SP).

Group and Category

II 3 G Ex nA II T4 X

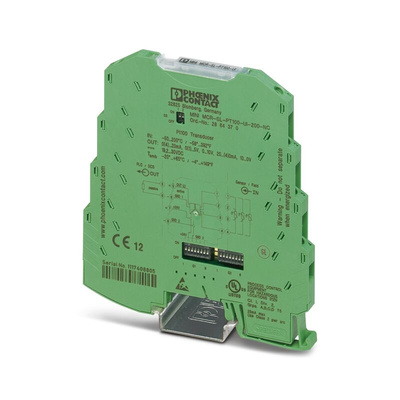

Phoenix Contact Configurable Temperature Transducer - MINI MCR-SL-PT100-UI-200-NC - 2864370

Use this transducer from Phoenix Contact to convert an input signal from a Pt 100 temperature sensor to a 4-20 mA output. This standard signal is a convenient way to create an interface with industrial equipment such as your programmable logic controller (PLC).
The product is suitable for use with data loggers in monitoring or process control applications. It has configurable inputs and outputs, which are set using dual in-line packaging (DIP) switches. This manual programming means there's no need for software control panels. Its compact design takes up minimal space on a printed circuit board.
Thanks to its wide measuring range of -50°C to +200°C, this is a versatile choice. It features a light-emitting diode (LED) to warn you clearly of errors. Its DIN rail mounting is sturdy and stands up well to the demands of challenging factory environments.

• Operating temperature range of -20°C to +65°C
• Output range of 0 V to 10 V and 0 mA to 20 mA
• Analogue output type
• Supply voltage of 24 V DC
