LD2006P0, Red Lion Counter, 6 Digit, 35kHz, Счетчик

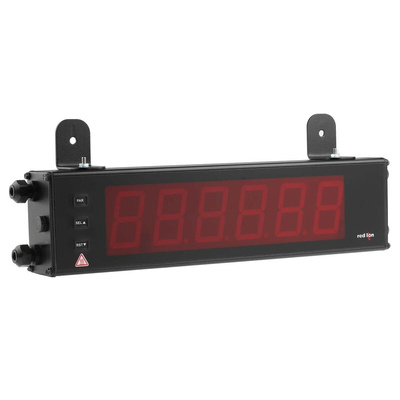

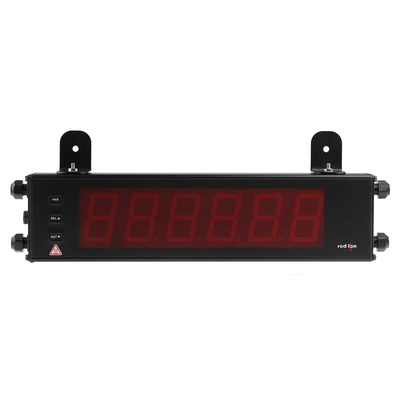

Red Lion Digital Counter

The Red Lion LD series digital counter is a 6-digit, 2.25in high display red LED count/rate indicator with dual relay output & RS232/RS485 serial communications. Its voltage rating ranges between 50VAC and 250VAC. This includes bi-directional, quadrature and anticoincidence counting, as well as a dual counter mode. When programmed as a dual counter, each counter has a separate scaling and decimal point selection.
This counter has a maximum count frequency of 35KHz.

Features and Benefits

Light, fully aluminium housing with mounting bracket
Plug-in screw terminal
Count/Rate indicator
Dual 5A form C relay
Built-in batch counting capability
Programmable scaling and decimal points
Serial communication interface with RS-232 and RS485
Programmable user input
Operating temperature ranges between 0°C and 50°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

CSA C22.2 No. 14-M95
EN 61010-1
File E137808
IEC 529
IEC 61010-1
IP65 rated
IP64 rated
UL508 approved

6 Digit Counter-Tachometer Data Sheet
