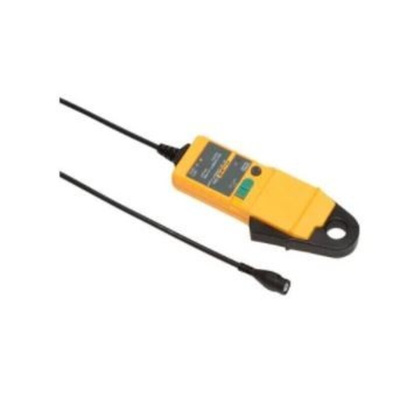

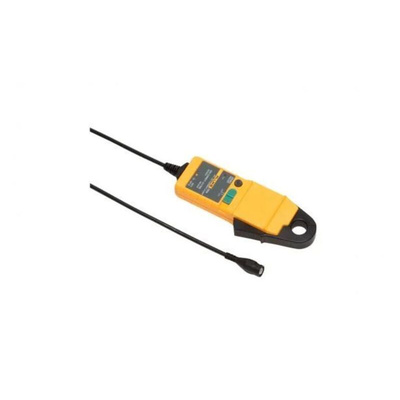

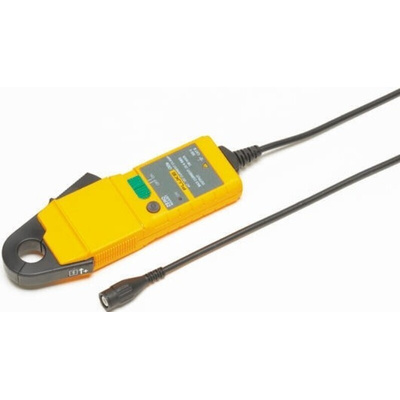

Fluke I30S Current Clamp, 30A DC Max, AC/DC Adapter, 20A ac AC Max - UKAS Calibrated

i30s 30A High Resolution, High Bandwidth Oscilloscope Current Probe

The i30 may be used in conjunction with bench and portable oscilloscopes for accurate non-intrusive ac & dc current measurement.,Applications include: inverters, switch mode power supplies, industrial controllers, automotive leakage currents and other applications requiring accurate isolated current measurement.

Hall effect sensing of a.c. and d.c. current
Power LED warns of low battery by flashing
Zero adjust knob to accommodate offsets
The wide, flat frequency response means this probe exhibits a fast response when measuring current pulses
2.0m flying lead terminated with 50Ω BNC plugs
Designed to meet EN61010-1, EN61010-2-032 installation CAT III 300V
Withstands overloads to 500A

Warning

Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc and frequencies below 1 kHz.

Supplied with

Alkaline PP3 battery, 4mm shrouded plug adaptor and operators manual.

Fluke AC/DC Current Clamp

Features and Benefits

• Hall effect sensing of AC/DC current


• Current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms


• Usable current range: 5 mA to 30 A DC, 30 mA to 20 A AC rms


• Frequency range: DC to 100 kHz (-0.5 dB)


• Low battery indicator - power LED warns of low battery by flashing


• Zero adjust knob to accommodate offsets


• The wide, flat frequency response means this probe exhibits a fast response when measuring current pulses


• 2 m lead terminated with 50Ω BNC plugs


• Designed to meet EN61010-1, EN61010-2-032 installation CAT III 300V


• Withstands overloads to 500A


• Power supply - 9 V Alkaline, MN1604/PP3, 30 hours


• Maximum conductor size - 19 mm diameter


• Output connection - Safety BNC connector, supplied with safety 4 mm adapter


• Weight - 250g


• Dimensions - 183 mm x 71 mm x 25 mm

Applications

Inverters
Switch mode power supplies industrial controllers
Automotive leakage currents
Applications requiring accurate isolated current measurement
Waveform analysis

Certifications

CAT III 300V
IEC 61010-1
Pollution degree 2
IEC 61010-2-032
IEC 61326-1
CE certified
cCSAus certified
EN61010-1
EN61010-2-032
