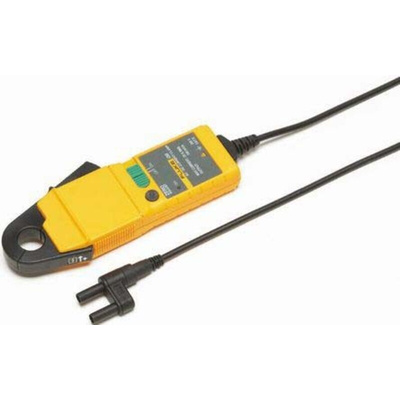

Fluke I30 Current Clamp, 30A DC Max, AC/DC Adapter, 30A ac AC Max, Current Output - RS Calibrated, Токоизмерительные клещи

i30 30A High Resolution, High Bandwidth Current Probe

The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive ac & dc current measurement.,Applications include: inverters, switch mode power supplies, industrial controllers, automotive leakage currents and other applications requiring accurate isolated current measurement.

Hall effect sensing of a.c. and d.c. current
Power LED warns of low battery by flashing
Zero adjust knob to accommodate offsets
1.5m flying lead terminated with 4mm shrouded plugs
Designed to meet EN61010-1, EN61010-2-032 installation CAT III 300V
Withstands overloads to 500A

Warning

Use of the probe on uninsulated conductors is limited to 300V ac rms or dc and frequencies below 1 kHz.

Supplied with

Alkaline PP3 battery and operators manual.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

i30s/i30 AC/DC Current Clamps Instruction Sheet

Datasheet - i30
