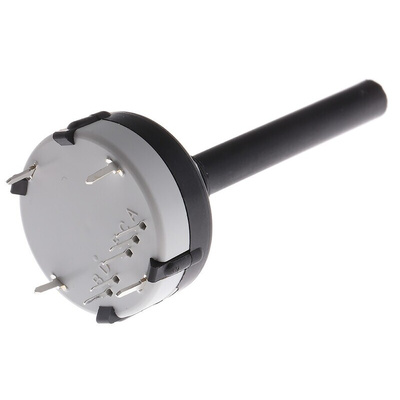

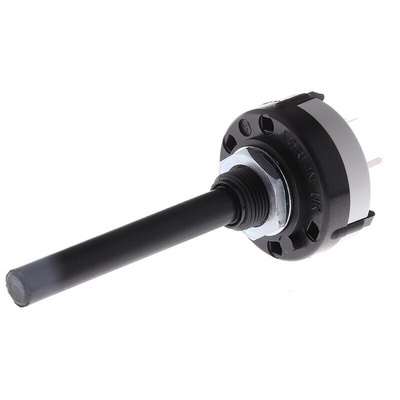

BCK1001, Lorlin, 16 Position, Hexadecimal SPST Rotary Switch, 150 mA @ 50 V, Through Hole, Поворотный переключатель

Binary Coded Rotary Switch - BCK & BCKS (IP65) Series

Lorlin BCK and IP65 sealed BCKS binary coded rotary switches. These panel mount, binary coded rotary switches have silver plated contacts and are available with an option of adjustable rotation limit stops (restricts number of positions) or non stop continuous rotation.

Features and Benefits:

• Contacts rated 150mA @ 50Vac/dc
• PCB terminals
• Proof voltage 250Vac
• UL-VO rated 27.5mm diameter body
• Binary coded hexadecimal, code 033
• 22.5º indexing
• Adjustable stop and continuous rotation options
• Metric shaft 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread

Note

The BCKS series are sealed to IP65, see stock numbers 739-2915, 739-2924

BCK binary coded rotary switch Datasheet
