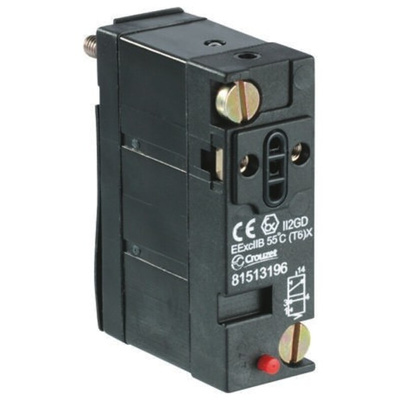

81513196, Crouzet 3/2 Pneumatic Solenoid Valve - Pilot/Spring 81 Series, Клапан

Miniature distributor 3 / 2 N/C

Miniature distributor 3 / 2 N/C monostable for use in flammable environments.
Relay switching time: 15 s.
Flow rate at 6 bar with Ø 4 mm sub-base: 200 Nl / min.
Flow rate at 6 bar with Ø 6 mm sub-base: 300 Nl / min.
Equivalent section with Ø 4 mm sub-base: 2.2 kV.
Equivalent section with Ø 6 mm sub-base: 2.5 kV.
Mechanical endurance: 1.5 x 107 operations.
Opening Ø: 3 mm.
Consumption: 0.7 W.
Weight: 38 g
Dimensions: 515 x 175 x 352 mm.

Certificate No.

II 2 GD EEx c II B 55 °C T6X

Crouzet

Modular solenoid valves and accessories that have been designed for manifold assembly, and DIN rail mounting.The valves act as a functional interface between electrical/electronic control systems and pneumatic drives.Main Features:

Low power consumption (1W)
High output pressure range, 3 to 8 bar
Rapid installation and easy maintenance
Ideal for use with programmable controllers
