RS PRO 4 mm Clear Neon Indicator Lamp, Wire Terminal, 100/120/220/250 V 250 μA, Лампа

T1 1/4 (4mm) Sub-Miniature Neon Lamps

Sub-miniature neon lamps for wiring directly into equipment. A suitable series resistor must be used

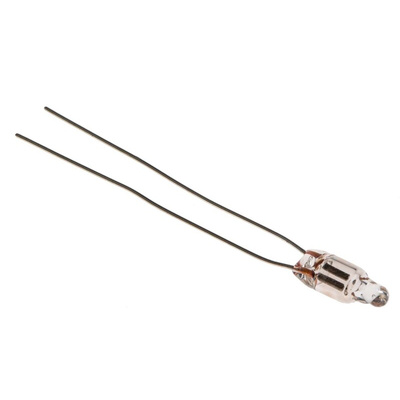

RS PRO 4 mm Clear Neon Indicator Lamp, Wire Terminal, 100/120/220/250 V 250 μA

Although basic in design, the RS PRO neon indicator lamp offers a powerful and durable option for signalling the availability of power in many commonly used electrical components.

This miniature lamp provides a long working life of 20,000 hours and high levels of brightness, thanks to its neon gas-filled glass casing. It has external wires that can be directly connected to equipment when used with a suitable limiting resistor in series with one leg. The body of the lamp is 4 mm in diameter and it emits a vivid, clear light. It has a current rating of 250 μA.

A neon indicator lamp such as this one is widely used in electrical components. Thanks to its long life and low power consumption, it's useful for long-term monitoring of mains voltage in a variety of industries.

Features and Benefits

• Neon indicator lamp with clear light
• Lamp diameter of 4 mm
• Wire terminal lamp base
• Life hours of 20,000 h
• Voltage rating of 100/120/220/250 V
• Length of 37 mm
• Current rating of 250 μA
• Must be used with limiting resistor in series with one leg, for example 95 K 9.6 W (230 V) and 44 K 0.5 W (110 V)
• RoHS (Restriction of Hazardous Substances) Compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Warning
type":"Warning",

Must only be used with limiting resistor in series with one leg e.g. 95K 9.6w (230v) and 44K 0.5W (110v)

RS Pro Datasheet
