RS PRO Midget Groove Indicator Light, Clear, 36 V, 30 mA, 5,000 h

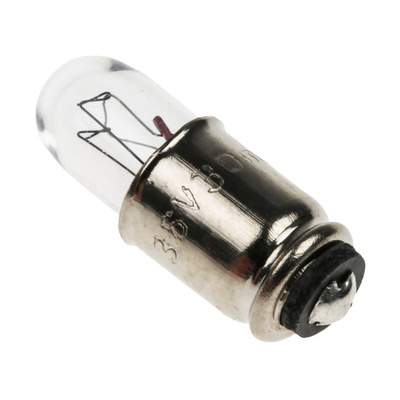

If you need to light up a switch efficiently, this RS PRO tubular S6S lamp will illuminate for 5,000 hours before it needs changing. It's in a miniature format and provides a luminosity of 3.5 lm, with a voltage rating of 36 V and a current rating of 30 mA.

The transparent incandescent lamp has a single contact on the base, with the body forming the other. It measures 15.9 mm in length by 5.84 mm in diameter, and the size of this lamp is classed at T1 3/4. A midget groove base mates with industry-standard sockets.

Safe to use, it won't damage equipment via electrostatic discharge and has been stringently tested to international standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200). In terms of hazardous materials, it's RoHS compliant, so you can be assured it contains only minimal levels.

Features and Benefits

• Indicator light
• Lamp size of T1 3/4
• Midget groove base
• 5,000 hr life
• Luminosity of 3.5 lm
• Voltage rating of 36 V
• Current rating of 30 mA
• Length of 15.9 mm
• Diameter of 5.84 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 on electrostatic discharge
• Compliant with RoHS on hazardous substances
