RS PRO, jack PCB Mount MMCX Connector, 50Ω, Solder Termination, Straight Body, Разъем

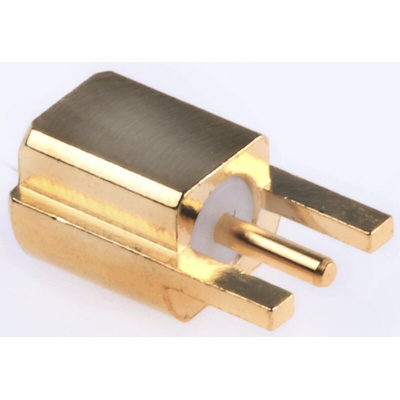

RS PRO 50 Ω Straight PCB Mounting, MMCX Connector Jack

RS PRO's MMCX (micro-miniature coaxial) connector is a small, snap-on coupling connector that lets you connect cables that can't be connected directly. Its extremely small size makes it ideal for use in situations where PCB (printed circuit board) space is limited, including GPS (Global Positioning System) receivers, wireless devices and WiFi PCMCIA (Personal Computer Memory Card International Association) cards.
The connector features a snap-on/snap-off coupling mechanism, so you can quickly connect and disconnect cables for reduced installation time. The snap-on mechanism also gives flexibility in PCB layouts by allowing for 360° rotation.
The connector offers a very low rate of radio frequency leakage, so the signals remain strong during use. This straight connector jack offers solder termination for a tight join and has a gold-plated copper body and contacts for high conductivity and wear resistance.

Features and Benefits

• Straight body orientation
• Gold body plating
• MMCX (micro-miniature coaxial) connector type
• Beryllium copper contact material
• Gold contact plating
• Female gender
• Impedance of 50 Ω
• PCB mounting type
• Operating frequency of 0 to 6 GHz
• Micro-miniature size
• Solder termination method

Dimensional Drawing

RS Pro Datasheet
