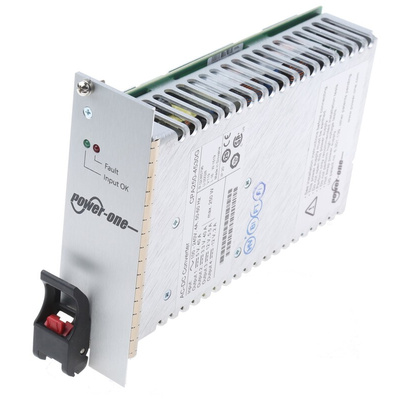

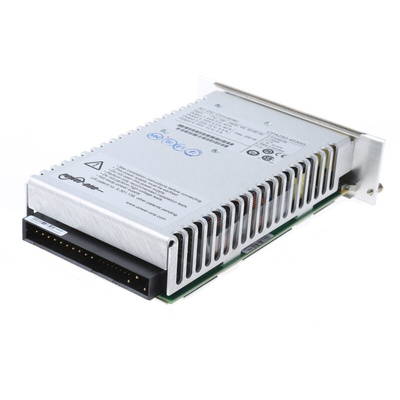

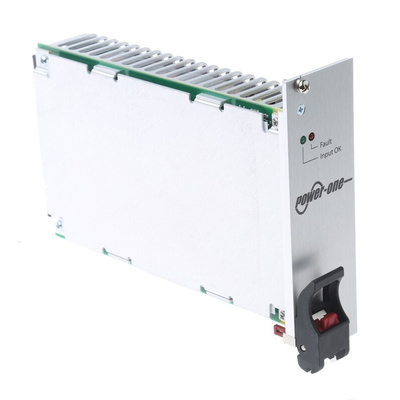

BEL POWER SOLUTIONS INC Rack Mount AC-DC Power Supplies
The BEL POWER SOLUTIONS INC AC-DC switch-mode power supply has a four output voltage rating of 3.3VDC, 5VDC, 12VDC and -12VDC. It has a power rating of 250W. These power supplies offer high power density in plug-in modules that meet the requirements of the PICMG power interface specification for CompactPCI systems.
Note:
250W with 400l/min forced air cooling.
Power derating above 50°C is 2.5% per °C.
Features and Benefits
Output current ratings of 2A, 5.5A and 40A
4 high current outputs with flexible load distribution
47-pin connector, type positronic
Extremely high efficiency and high power density
Hot-swap capability
Inhibit and enable inputs
Input good and power supply fault LED indicators
Integrated O-ring FETs/diodes for true redundancy
Low inrush current
Over temperature, over voltage, over current, and over power protection
Remote sense lines
Single-wire current share function for 3 outputs
Wide range DC or AC input with PFC
Applications
Aerospace
Communications
Industry
Military
Certifications
cCSAus certified
CE certified
EN60950
UL 1950 approved
