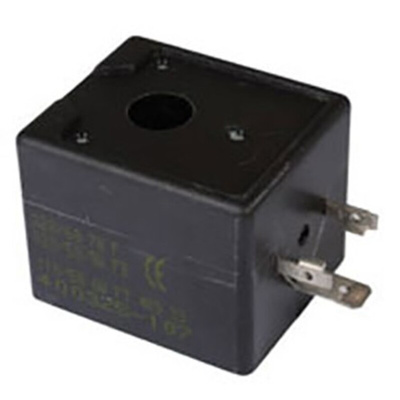

Asco Solenoid Coils for Process Valve 400 325 142, Series 238 24 V dc

6563210
Цена за шт.
2834.70 руб. *

Срок поставки: 4-6 недель

Stock Number: 656-3210
Номер производителя: 400 325 142
Производитель: Asco
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Coils for 238 solenoid valve

Coils for 238 series solenoid valves.
Magnetic heads.
Coils with removable connector: CM6.

Stock no. Manuf. ref. Voltage Coil type CM6
Direct Alternating
656-3462 400 325 101 24 V n/a FT
656-3197 400 325 117 230 V n/a FT
656-3210 400 325 142 n/a 24 V FT
656-3456 400 325 201 24 V n/a FB
656-3484 400 325 217 230 V n/a FB
656-3175 400 325 242 n/a 24 V FB
Two Way Inert Gases and Fluid Valves

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Техническая спецификация
pdfSolenoids Coils and Accessories Data Sheet

Для использования с:
Соленоидный клапан
Напряжение питания:
24 В пост. тока
Серия:
238
