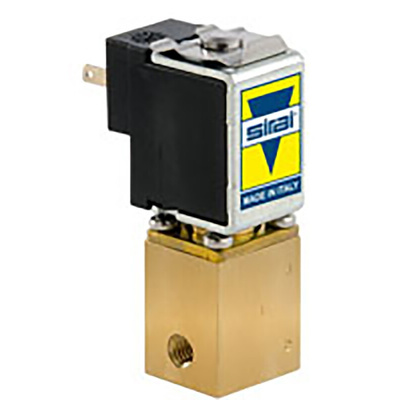

Sirai Solenoid Valve V365B01C-Z031A M5x1,2 V24/DC , 3 port(s) , NC, 24 V dc, M5, Клапан

V365 series 3/2 micro solenoid valve

Direct acting micro solenoid valve 2/2 N/C, M5 connections.
Compact size, high response time and a high number of cycles.
Suitable for fluids and gases.
Not for use with Group 1 hazardous fluids.
Mounting seals supplied with the valve.

3 Way Inert Gases and Fluid Valves

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and this is described on the right hand side of the diagram, see the typical schematic diagram below.,The 3//2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2//2-way valves as two-way.,The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications will indicate the appropriate connections and pressure capabilities should an alternative circuit function be required.
