MEAN WELL Switching Power Supply, AD-155A, 13.5V dc, 10.5 A, 500 mA, 151.5W, Dual Output, 124 → 370 V dc, 88, Источник питания

Mean Well Battery Backed Power Supply

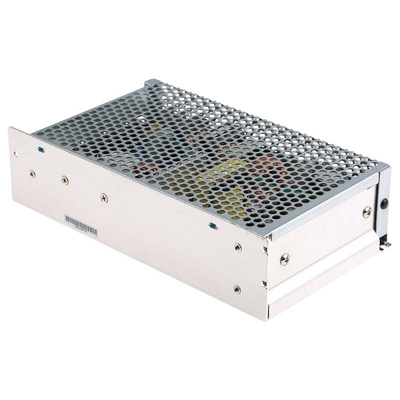

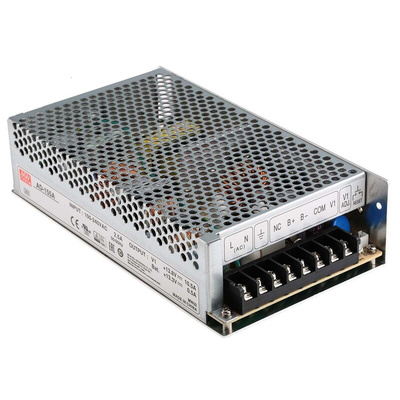

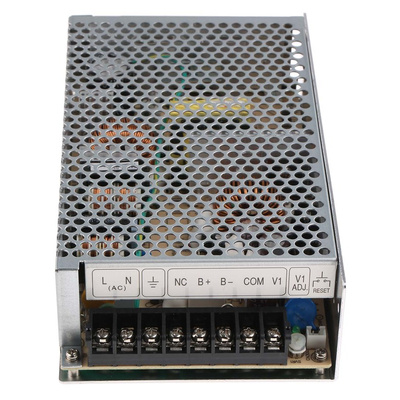

The Mean Well AD-155 series 151.55W dual output embedded switch mode power supply has output currents of 10.5A at 13.8VDC (channel 1) and 0.5A at 13.3VDC (channel 2). This battery backed PSU operates as an integrated power supply. It can simultaneously power an electrical device while charging a rechargeable battery. If the mains power supply fails, the unit switches to the external battery that continues to power the electrical device until the mains power is resupplied, or the battery runs out. It is used with batteries with a capacity below 3Ah. It has a universal input supply voltage rating ranging from 88VAC to 264VAC/124VDC to 370VDC.
Note:
MTBF to MIL-HDBK-217F.

Features and Benefits

Battery charger UPS function
Short circuit
Overload and over voltage protection
Battery low protection
Built in EMI filter
Full load burn-in test 100%
Chassis mount
Enclosed package type

Applications

Security industry
Battery backup systems

Certifications

EN 60950-1
UL60950-1
TUV approved

AD-155 Series specificaton sheet

Declaration Of Conformity
