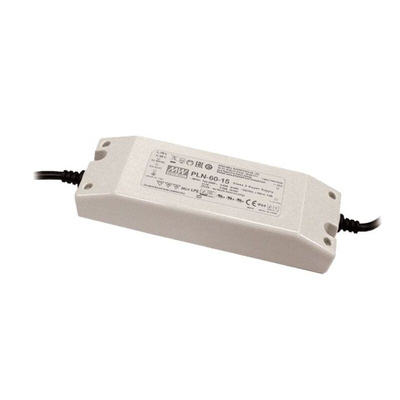

PLN-60-12, MEAN WELL LED Driver, 12V Output, 60W Output, 5A Output, Constant Voltage, Драйвер светодиодов

RS - 60W Waterproof (IP64) SMPSU with PFC

External switch mode IP64 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Built-in constant current limiting circuit with adjustable over current protection
100% full load burn-in test
Fully regulated output
Short circuit, over-load, over-voltage, over-temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 18AWG output lead
UL1310 Class 2 power unit, pass LPS
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Power derates above 40°C.
MTBF to MIL-HDBK-217F.

Standards

TUV EN 61347-1, EN 61347-2-13, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91 (except for 48V)

Approvals

TUV, UL recognised for Canada & US
