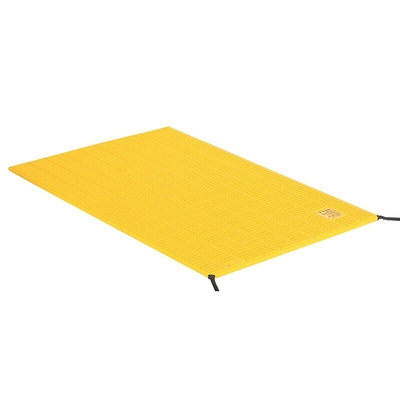

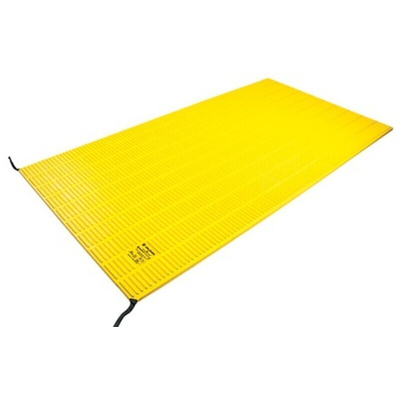

440F-M1020BYNN, Allen Bradley Guardmaster MatGuard 440-F Pressure Mat, Plastisol Vinyl 1m x 500mm, Коврик

6600671
Номер производителя: 440F-M1020BYNNПроизводитель: Allen Bradley Guardmaster
Цена за шт.
170946.00 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Allen Bradley Guardmaster Safety Mat

The Allen Bradley Guardmaster Matguard 440-F safety mat is a high-quality mat made of plastisol vinyl and has a size of 1000mm x 500mm. This is a pressure-sensitive safeguarding product designed to detect the presence of people on its sensing surface. It has two conductive hardened steel plates held apart by non-conductive compressible separators. Each four-wire mat operates on 24VDC that is pre-wired and connected in series with other mats to form a floor level guarding system for hazardous areas. The circuit through the mat requires monitoring by a safety-rated control unit such as a minotaur safety relay, Matguard control unit, or Matguard mat manager. Once the mat is clear, the control unit provides a signal to the machine control circuit. In addition, when a mat is stepped on, the conductive plates touch causing the resistance in the circuit to fall down to zero. This is monitored by the control unit that sends a shutdown signal to the machine. The Matguard safety mat completely sealed to prevent water, liquids, and coolants. Also, the tough vinyl resists bleaches, acids, salts, and many industrial chemicals. The unique moulding process is responsible for the long life and reliability of the mat.

Features and Benefits

Hardened steel plate construction
No dead spots
4-wire system to detect opens and shorts
Can withstand a static pressure of 4500psi

Applications

To detect an employee entering a dangerous zone
Provide presence sensing of employees remaining inside a hazardous area
A safety device in an industrial environment

Certifications

IP67 rated
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5

Техническая спецификация
pdfMatguard Safety Mats Data Sheet
pdfDatasheet
pdfMachine Guarding and Safety Range Overview
Диапазон:
MatGuard
Длина:
Защищенная область:
1000 x 500мм
Материал:
Plastisol Vinyl
Размеры:
1000 x 500 мм
Серия:
440-F
Степень защиты IP:
IP67
Толщина:
16мм
Ширина:
500мм
