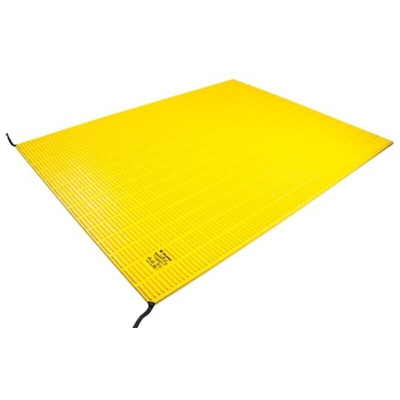

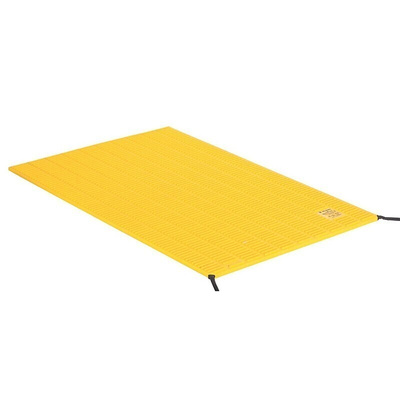

440F-M1520BYNN, Allen Bradley Guardmaster MatGuard 440-F Safety Mat, Plastisol Vinyl 1m x 750mm, Коврик

Allen Bradley Guardmaster Safety Mat, 1m Length, 750mm Width - 440F-M1520BYNN

Restrict unauthorised access to sensitive equipment and prioritise user safety with this mat from Rockwell Automation's Allen Bradley Guardmaster range. It's a pressure-sensitive device that operates using a safety control unit linked to your machinery. When it senses a weight of 30kg or higher on the mat's surface, the controller shuts down attached machinery to prevent injury. The unit has a broad operating temperature range between -25ºC and +55ºC, so you can use it in demanding conditions. For durability, a rugged plastisol vinyl body provides resistance to the impacts and corrosion you'd expect in heavy-duty industrial settings.

Features and Benefits

• Surface mounting style for quick and easy installation
• 24V DC supply voltage for easy compatibility
• IP67 rating indicates it's fully dust-proof and can be immersed in 1m of water for 30 minutes
• Dimensions of 1000mm (length) x 500mm (width) for coverage of large surface areas

Standards and Certifications

• CSA
• TUV
• ISO 13849-1

How long will this safety mat last?

IP67 rated
CE certified
TUV certified
CSA certified
cULus approved
EN1760-1
EN954-1
ISO 13849-1
IEC/EN60204-1
ANSI RIA R15.06
ANSI/B11.19
AS4024.5

This mat has a mechanical life of up to 10 million operations, making it a long-lasting choice.

Matguard Safety Mats Data Sheet

Datasheet

Machine Guarding and Safety Range Overview
