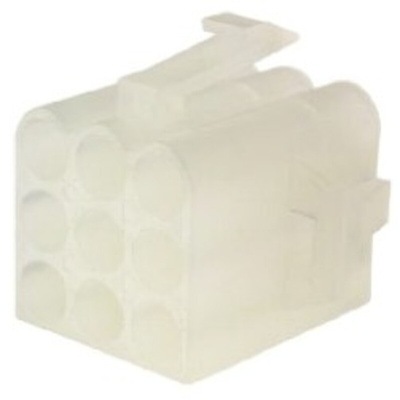

1-480672-0, TE Connectivity, Commercial MATE-N-LOK Male Connector Housing, 6.1mm Pitch, 9 Way, 3 Row, Корпус разъема

TE Connectivity 6.09mm .140 MATE-N-LOK Panel Mount Plug and Receptacle Housings, 9 Circuit Matrix

.140 MATE-N-LOK panel mount plug and receptacle housings with a 6.09mm centreline for large insulation diameters of up to 4.57mm and a and a 9 circuit matrix. .140 MATE-N-LOK panel mount plug housing (stock number 660-0943) accepts socket contacts (see stock number 720-2045 typically), .140 MATE-N-LOK panel mount receptacle housing (stock number 660-0946) accepts crimp pin contacts (see stock number 709-9802 typcially). These .140 MATE-N-LOK plug and receptacle housings are made from natural coloured UL94V-2 nylon, are fully polarized, have dual locking lances that provide contact stability and Positive Lock mating retention.

TE Connectivity .140 MATE-N-LOCK Housings

Internal equipment connection wire-to wire for discrete wire 6.09mm (.24 in) pitch,Contacts accept wire size range 20 - 10 AWG (.5 - 5 mm²)

Fully polarized nylon housings
Low insertion/extraction forces
Contacts fully protected in housing
For suitable contacts see typically stock no 660-0952 pin contact, 660-0978 socket contact

9w Socket housing (plug)
