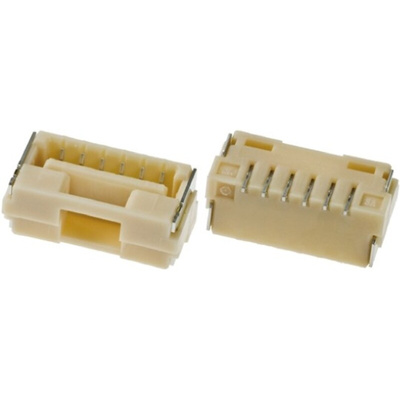

502382-0670, Molex CLIK-Mate Series Straight Surface Mount PCB Socket, 6-Contact, 1-Row, 1.25mm Pitch, Solder Termination

1.25mm Vertical PCB Receptacle

1.25mm Wire to Board CLIK-Mate™ SMT

1.25 W/B Sgl S/T Rec Assy 6CktEmbsTpPkg

1.25mm Wire to Board CLIK-Mate™ SMT

The SMT CLIK-Mate™ series has a lock design that offers ease of use combined with superior mating retention.,With a unique tuning-fork terminal concept that provides low insertion force and secure mating contact.,The system also provides about 60% space saving compared with similar dual-lock 2.00mm pitch versions.,Designed for applications such as LCD TV's that require higher pin count connectors to carry more signal line in less space.

Robust positive lock provides greater mating assurance
Direct vacuum pick-and-place; no capton tape needed
Superior terminal polarization features prevent wrong terminal insertion
Single lock 1 - 7 way, dual lock 8 - 15 way

1.25 W/B Conn Single S/T Rec Assy 2-7 Ckt Drawing

Datasheet

Line Drawing
