PX0870, Bulgin Buccaneer Series Female RJ45 Connector, Panel Mount, Cat5e, Разъем

Cat5e Shielded Coupler

From Bulgin, this Buccaneer series RJ45 connector is shielded and operates at a LAN Category of 5e. Designed to mate with corresponding Buccaneer series plugs, the connector seals to IP68, meaning a good degree protection against dust and water is assured. The screw lock system assures a secure and reliable connection. All models are highly reliable and excellent quality.

Features and Benefits:

An operating temperature range of -20 to +80°C
A flammability rating of UL94V-0
Mates with all Ethernet Buccaneer cable-mounted connectors
30 V ac/42V dc

PX0870

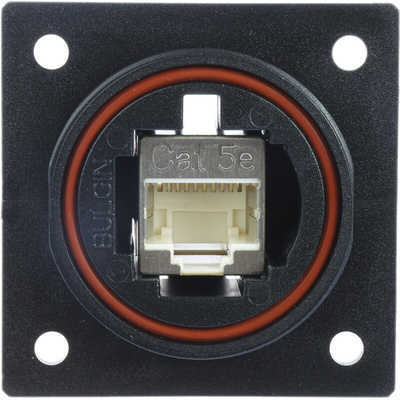

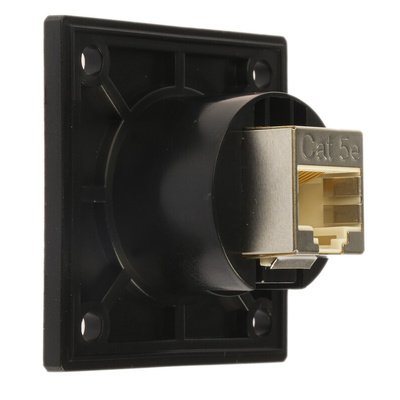

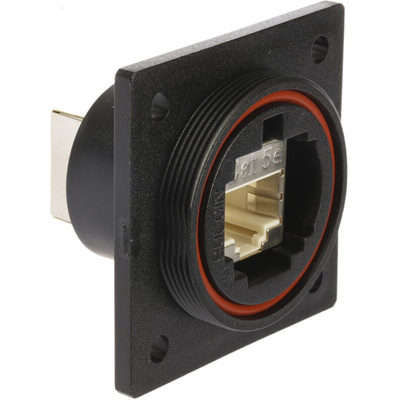

Bulgin PX0870 is a CAT 5e flange mounting ethernet coupler with RJ45 sockets on both ends. This coupler mates with Buccaneer 6000 series RJ45 patch cords creating a sealed ethernet connection, while a standrad ethernet patch cord can be plugged into rear.

Bulgin Buccaneer Range

The Ethernet Buccaneer provides a high degree of environmental sealing for standard Cat5e RJ45 connections. It is an ideal solution to connectivity in harsh and difficult industrial areas.

PX0870 Datasheet
