GLM40, Bosch GLM 40 Laser Measure, 0.05 → 40m Range, ±1.5 mm Accuracy

Bosch GLM 40, Battery, Professional, Compact Distance Laser Measure Range Finder.

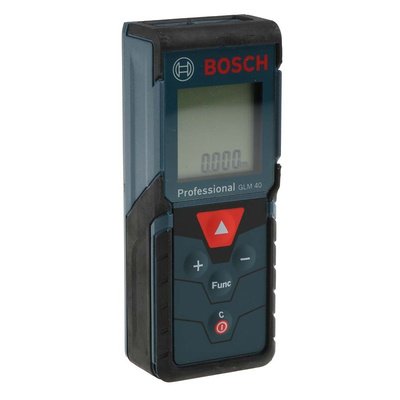

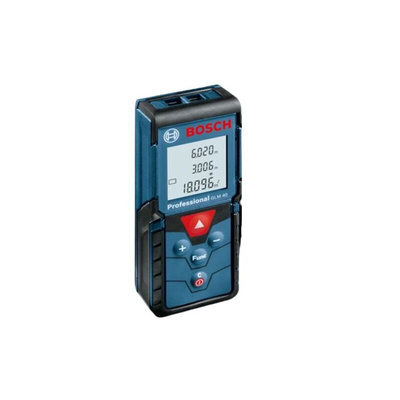

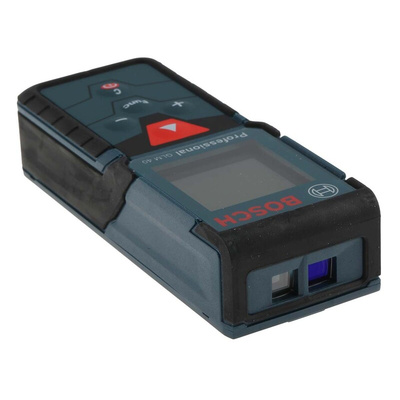

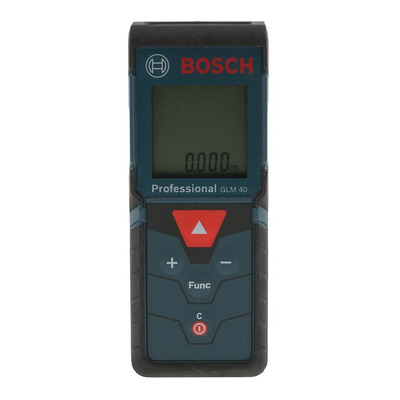

Bosch GLM 40 is a compact easy to use, battery operated laser measure, range finder with an LCD display all IP 54 rated. The back-lit, easy to read screen provides you with a 3-line display, memory storage of your previous 10 measurements including of the standard measurement functions of distance, length, area and volume. With a measurement range of 40 metres the GLM 40 has everything you will need wrapped in a compact hardwearing package.

Features and Benefits

• GLM 40 laser measure, range finder.
• Compact, ergonomic design.
• LCD display.
• Backlit.
• Easy to read.
• 3-Line display.
• IP 54 rated.
• Memory of last 10 measurements.
• Intuitive.
• Reliable results (ISO certification).
• Distance, length, area, volume measured.
• Measuring range up to 40 m.
• Laser class 2.
• Laser diode 635 nm.
• Automatic deactivation after 5 minutes.
• Measurement in units of m/cm, ft/inches.
• Continuous measurement.
• Mute function.
• Batteries required 2 x 1.5 V AAA, LR03.
• Total weight 0.09 kg.
• Internal and external use.
• Hardwearing.
• Drop tested protection to 1m.

GLM 40 dimensions

• Height 24 mm.
• Length 105 mm.
• Width 41 mm

Typical Applications

• Internal and external.
• Any application where a measurement is required with a 40-metre range.

Other Bosch Laser Measures Available?

• Stock number 1138670, GLM 30, 30 m range.
• Stock number 6927162, GLM 250, 250 m range.
• Stock number 6609530, GLM 40, 40 m range.
• Stock number 1138671, GLM 50C, 50 m range.
• Stock number 6927169, GLM 150, 150m range.
• Stock number 7646357, GLM 50 C, 50 m range.
• Stock number 7646410, GCL 25, 30 m range, tripod compatible.
• Stock number 7358700, GLM 80, 80 m range.
• Stock number 7646414, GLM 80 + R60, 80 m range.
• Stock number 7646423, GLM 250VF, 250 m range.

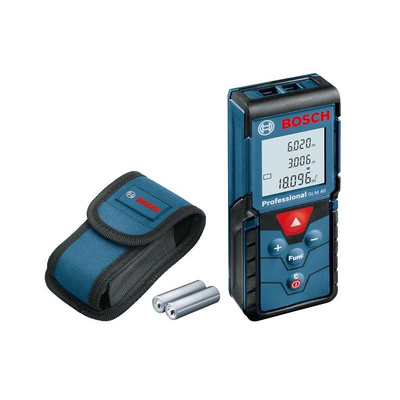

What is included?

• Laser measure range finder.
• Protective bag.
• 2 x 1.5 V AAA, LR03 batteries.

FAQ’s

Are batteries supplied with the measure?
• Yes, batteries are supplied, 2 x 1.5 V LR03, AAA batteries.

Is this laser IP rated?
• Yes, the laser measure is IP 54 rated (dust and splash protected).

Can this laser measure be mounted on a tripod?
• The GLM 40 cannot be tripod mounted there is no tripod mounting point.

Standards

IP 54

Certificate No.
type":"Certificate No.",

ISO 16331-1

Datasheet
