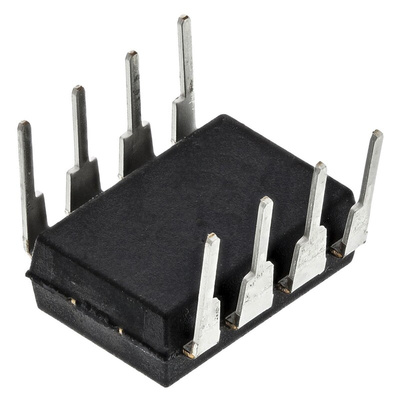

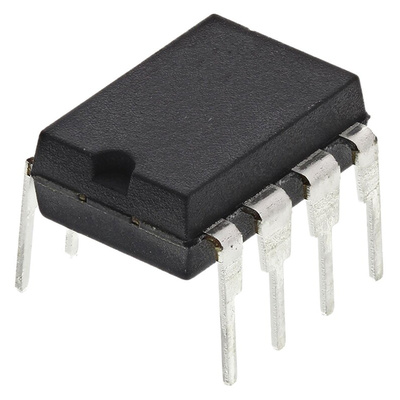

LT1013DIP Texas Instruments, Op Amp, 5 → 28 V, 8-Pin PDIP

Precision Operational Amplifiers, Texas Instruments

A range of precision operational amplifiers from Texas Instruments featuring low input offset voltage and low offset voltage drift with temperature. These devices exhibit stable and predictable operating characteristics which are essential in many demanding applications. CMOS and JFET input types also have extremely low input bias currents making them ideal for use in circuits where high values of resistance are required.

The Texas Instruments LT1013D devices are dual precision operational amplifiers, featuring high gain, low supply current, low noise, and low-offset-voltage temperature coefficient. This devices can be operated from a single 5-V power supply
the common-mode input voltage range includes ground, and the output can also swing to within a few millivolts of ground. Crossover distortion is eliminated. The LT1013D can be operated with both dual ± 15-V and single 5-V supplies.

Single-Supply Operation
Input Voltage Range Extends to Ground
Output Swings to Ground While Sinking Current
Phase Reversal Protection
Input Offset Voltage
150 μV Maximum at 25°C for LT1013AM
Offset-Voltage Temperature Coefficient
2 μV/°C Maximum for LT1013AM
Input Offset Current
0.8 nA Maximum at 25°C for LT1013AM
High Gain
1.5 V/μV Minimum (RL = 2 kΩ) for LT1013AM
0.8 V/μV Minimum (RL = 600 kΩ) for LT1013AM
Low Supply Current
0.5 mA Maximum at TA = 25°C for LT1013AM
Low Peak-to-Peak Noise Voltage
0.55 μV Typical
Low Current Noise
