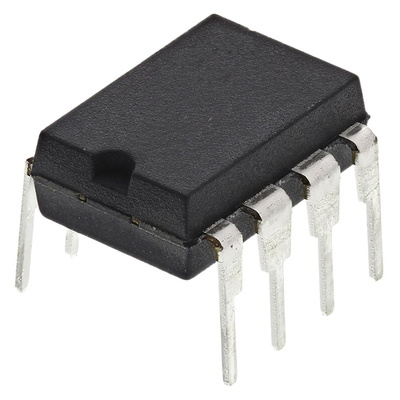

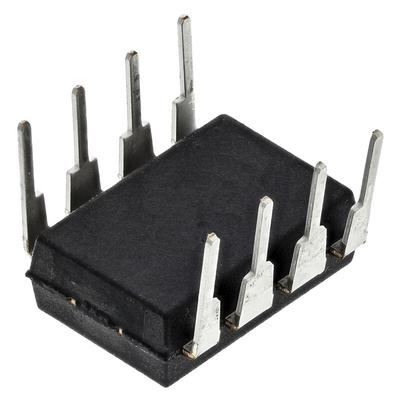

OPA2227P Texas Instruments, Op Amp, 8MHz, 8-Pin PDIP, Операционный усилитель

Precision Operational Amplifiers, OPA Series

Precision operational amplifiers from Texas Instruments Burr Brown OPA series are suitable for demanding applications requiring high accuracy and low parametric drift with time and temperature. Typical applications include transducer and strain gauge amplifiers, precision integrators, active filters and high accuracy instrumentation. Many of these devices are available in single, dual and quad configurations, in both through-hole and SMT formats.

The Texas Instruments OPA222x series operational amplifiers combine low noise and wide bandwidth with high precision to make them the ideal choice for applications requiring both AC and precision DC performance. The OPAx227 is unity-gain stable and features high slew rate (2.3V/μs) and wide bandwidth (8MHz). The OPAx228 is optimized for closed-loop gains of 5 or greater, and offers higher speed with a slew rate of 10V/μs and a bandwidth of 33MHz.

Low Noise: 3nV/√Hz
Wide Bandwidth:
OPA227: 8 MHz, 2.3 V/μs
OPA228: 33 MHz, 10 V/μs
Settling Time: 5 μs
(Significant Improvement Over OP-27)
High CMRR: 138 dB
High Open-loop Gain: 160 dB
Low Input Bias Current: 10 nA Maximum
Low Offset Voltage: 75 μV Maximum
Wide Supply Range: ±2.5 V to ±18 V
