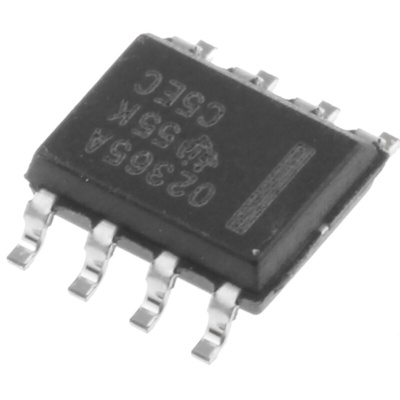

OPA2365AID Texas Instruments, Op Amp, RRIO, 50MHz, 3 V, 5 V, 8-Pin SOIC, Операционный усилитель

Low Voltage Operational Amplifiers

The Texas Instruments OPA2365 zero-crossover series offers rail-to-rail, high-performance, CMOS operational amplifiers that are optimized for very low voltage, single-supply applications. Rail-to-rail input or output, low-noise (4.5 nV/√Hz) and high-speed operation (50-MHzGain Bandwidth) make these devices ideal for driving sampling analog-to-digital converters (ADCs).Applications include audio, signal conditioning, and sensor amplification.

Gain Bandwidth: 50 MHz
Zero-Crossover Distortion Topology:
Excellent THD+N: 0.0004%
CMRR: 100 dB(Minimum)
Rail-to-Rail Input and Output
Input 100 mV Beyond Supply Rail
Low Noise: 4.5 nV/√Hz at 100 kHz
Slew Rate: 25 V/μs
Fast Settling: 0.3 μs to 0.01%
Precision:
Low Offset: 100 μV
Low Input Bias Current: 0.2pA
2.2-V to 5.5-V Operation
