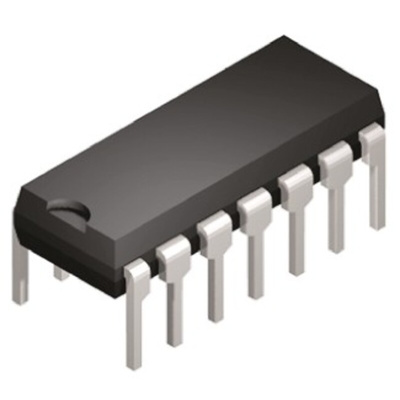

TLE2144CN Texas Instruments, Precision, Op Amp, 5.8MHz, 5 → 28 V, 14-Pin PDIP, Операционный усилитель

Precision Op Amps, Excalibur TLE Series

The Texas Instruments TLE2144 devices are high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process. The TLE214xA is a tighter offset voltage grade of the TLE214x. Both are pin-compatible upgrades to standard industry products. The devices are stable with capacitive loads up to 10 nF, although the 6-MHz bandwidth decreases to 1.8 MHz at this high loading level.

Low Noise
10 Hz...15 nV/Hz\\
1 kHz...10.5 nV/Hz\\
10000-pF Load Capability
20-mA Min Short-Circuit Output Current
27-V/μs Min Slew Rate
High Gain-Bandwidth Product...5.9 MHz
Low VIO ...500 μV Max at 25°C
Single or Split Supply...4 V to 44 V
Fast Settling Time
340 ns to 0.1%
400 ns to 0.01%
Saturation Recovery...150 ns
Large Output Swing
VCC– +0.1 V to VCC+ –1 V
