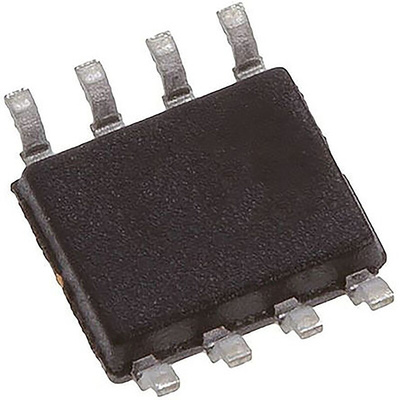

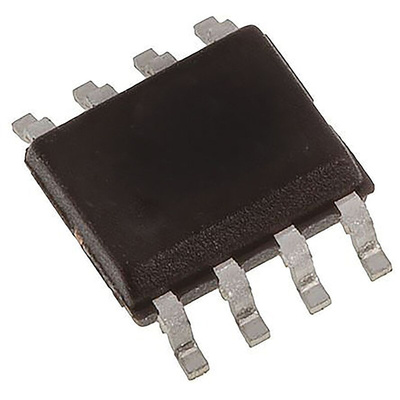

Texas Instruments UCC27424D, MOSFET 2, 4 A, 15V 8-Pin, SOIC

MOSFET & IGBT Drivers, 3A to 5A, Texas Instruments

A range of dedicated Gate Driver ICs from Texas Instruments suitable for both MOSFET and IGBT applications. The devices are capable of providing suitable high current outputs compatible with the drive requirements of MOSFET and IGBT power devices and are available in a variety of configurations and package types.

The Texas Instruments UCC27424 family of high-speed dual MOSFET drivers can deliver large peak currents into capacitive loads. Three standard logic options are offered – dual-inverting, dual-noninverting, and one-inverting and one-noninverting driver. The thermally enhanced 8-pin Power PAD™ MSOP package (DGN) drastically lowers the thermal resistance to improve long-term reliability. It is also offered in the standard SOIC-8 (D) or PDIP-8 (P) packages.

Industry-Standard Pin-Out
Enable Functions for Each Driver
High Current Drive Capability of ±4 A
Unique Bipolar and CMOS True Drive Output
Stage Provides High Current at MOSFET Miller
Thresholds
TTL/CMOS Compatible Inputs Independent of
Supply Voltage
20-ns Typical Rise and 15-ns Typical Fall Times
with 1.8-nF Load
Typical Propagation Delay Times of 25 ns with
Input Falling and 35 ns with Input Rising
4-V to 15-V Supply Voltage
Dual Outputs Can Be Paralleled for Higher Drive
Current
Available in Thermally Enhanced MSOP
Power PAD™ Package
Rated From –40°C to 125°C
