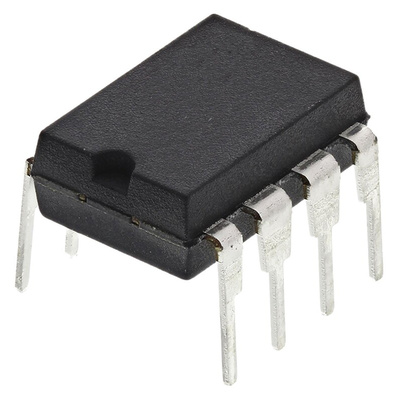

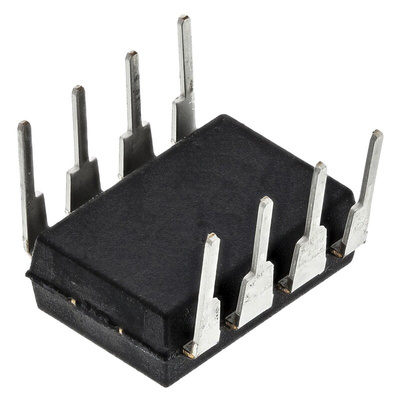

Texas Instruments UCC37322P, MOSFET 1, 9 A, 15V 8-Pin, PDIP

MOSFET & IGBT Drivers, 6A to 10A, Texas Instruments

A range of dedicated Gate Driver ICs from Texas Instruments suitable for both MOSFET and IGBT applications. The devices are capable of providing suitable high current outputs compatible with the drive requirements of MOSFET and IGBT power devices and are available in a variety of configurations and package types.

The Texas Instruments UCC37322 family of high-speed drivers deliver 9 A of peak drive current in an industry standard pinout. These drivers can drive the largest of MOSFETs for systems requiring extreme Miller current due to high dV/dt transitions. This eliminates additional external circuits and can replace multiple components to reduce space, design complexity, and assembly cost. Two standard logic options are offered, inverting and noninverting.

Industry-Standard Pin-Out With Addition of Enable
Function
High-Peak Current Drive Capability of ±9 A at
the Miller plateau region Using True Drive
Efficient Constant Current Sourcing Using a
Unique Bipolar and CMOS Output Stage
TTL/CMOS Compatible Inputs Independent of
Supply Voltage
20-ns Typical Rise and Fall Times With 10-nF
Load
Typical Propagation Delay Times of 25 ns With
Input Falling and 35 ns With Input Rising
4-V to 15-V Supply Voltage
Available in Thermally Enhanced MSOP
Power PAD™ Package With 4.7°C/W θjc
Rated From –40°C to +105°C
Pb-Free Finish (CU NIPDAU) on 8-pin SOIC and
PDIP Packages
