TCP0150, Tektronix TCP 0150 Oscilloscope Probe, AC/DC Type, DC → 20MHz, Щупы для осциллографа

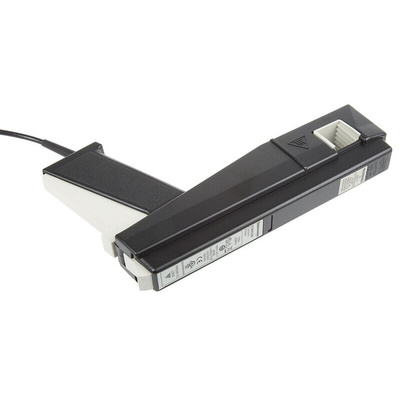

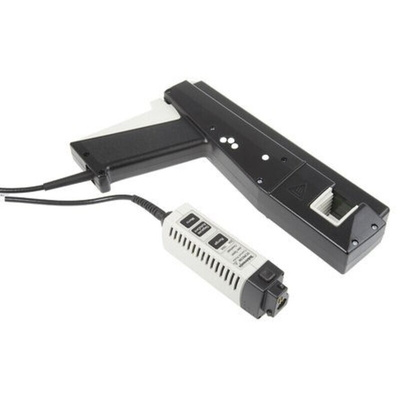

TCP0150 AC/DC current probe

Can be directly connected to DPO4000, MSO4000 and DPO7000 oscilloscopes using the TekVPI interface

Rise time: ≤17.5 ns
RMS max. current: 150 A
Max. inrush peak current: 500 A
Operating temperature: 0 → 50°C

Tektronix Current Probe & Clamp

The Tektronix is a high performance and easy-to-use 150A AC/DC current probe designed for use and direct connection to the TekVPI™ probe interface. This AC/DC current measurement probe provides 20MHz of frequency bandwidth with selectable range control for 25A and 150A measurement ranges. It also provides low-current measurement capability and accuracy to current levels as low as 5mA per division, important for achieving a broad dynamic current range of high-level and low-level measurement signals.

Features and Benefits

• Easy-to-use and accurate AC/DC current measurements
• Connects directly to oscilloscopes with the TekVPI™ probe interface
• Low noise and DC drift
• Provides automatic units scaling and readout on the oscilloscope's display
• Remote GPIB/USB probe control through the oscilloscope
• Split-core probe head construction allows easy connection to conductors
• Easy to degauss and autozero
• set-up controls and probe status and diagnostic indicators are provided on both the probe hardware and through an easy-to-access scope UI display menu

Applications

• Power supplies
• Semiconductor devices
• Power inverters/converters
• Electronic ballasts
• Industrial/consumer electronics
• Motor drives
• Transportation systems

Certifications

• CAT I 600V
• CAT II 600V
• CAT III 300V
• CAT I
• CAT II
• CAT III
