Tektronix TAP Series TAP1500 Oscilloscope Probe, Active Type, 1.5GHz, 1:10, Щупы для осциллографа

Tektronix Oscilloscope Probes

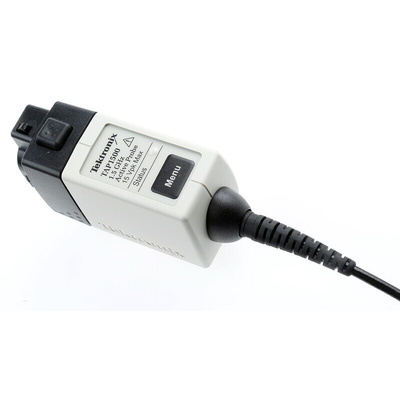

The Tektronix single-ended Active FET oscilloscope probe provides excellent high-speed electrical and mechanical performance required for digital system designs. It is specifically designed for direct connection to oscilloscopes with the TekVP probe interface.
Note:
TAP1500 includes individual probe case

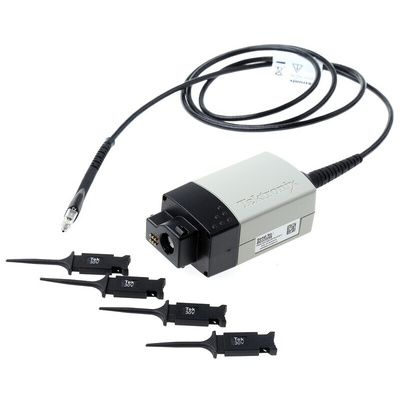

Supplied with:
Ground leads
Adaptors
Colour-coding clips
Solderable probe tips
Test tips
User manual

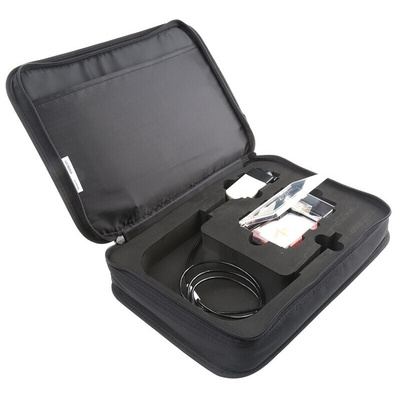

Nylon carrying case

Features and Benefits

Bandwidth is DC to 1.5GHz
Rise time is 267ps
Attenuation ratio is 1:10
Maximum common mode input voltage is 10V
Input impedance is 1Mohmll1pF
Input capacitance is 1pF
Non-destructive max. input voltage is ±15V (DC + peak AC)
Input dynamic range -8V to 8V
Input offset range -10V to 10VDC
Versatile Mechanical Performance:
-Small compact probe head for probing small geometry circuit elements
-DUT attachment accessories Enable Connection to SMDs as small as 0.5mm pitch
-Robust design for reliability
Easy to use:
-Provides automatic units scaling and readout on the oscilloscope display
-Easy access to oscilloscope probe menu display for probe
-Status/Diagnostic information, and to control probe DC offset
-Remote GPIB/USB Probe control through the oscilloscope

Applications

high-speed digital systems design
Component design and characterization
Manufacturing engineering and test
Educational research
Signals with voltage swings up to 16Vp-p

Certifications

WEEE compliant
