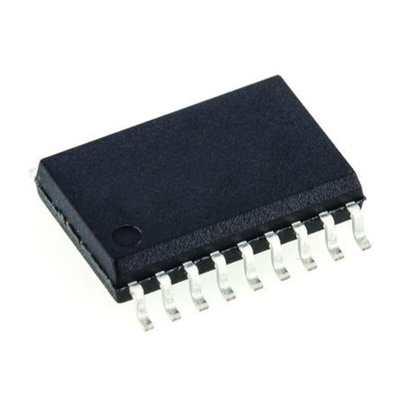

Texas Instruments UC3526ADW, Dual PWM Controller, 35 V, 650 kHz 18-Pin, SOIC, ШИМ регулятор

Flyback Controller, Voltage Control, Texas Instruments

The isolated-flyback power supply controller provides Constant-Voltage (CV) and Constant-Current (CC) output regulation to improve transient response to large load steps. Primary-Side Regulation (PSR) eliminates the need for an Optocoupler.

The Texas Instruments UC1526A Series are improved-performance pulse-width modulator circuits intended for direct replacement of equivalent non- \\x93A\\x94 versions in all applications. Higher frequency operation has been enhanced by several significant improvements including: a more accurate oscillator with less minimum dead time, reduced circuit delays (particularly in current limiting), and an improved output stage with negligible cross-conduction current. Additional improvements include the incorporation of a precision, band-gap reference generator, reduced overall supply current, and the addition of thermal shutdown protection.

Reduced Supply Current
Oscillator Frequency to 600kHz
Precision Band-Gap Reference
7 to 35V Operation
Dual 200mA Source/Sink Outputs
Minimum Output Cross-Conduction
Double-Pulse Suppression Logic
Under-Voltage Lockout
Programmable Soft-Start
Thermal Shutdown
TTL/CMOS Compatible Logic Ports
5 Volt Operation (VIN = VC = VREF = 5.0V)

Flyback Controllers, Texas Instruments

Current-Mode and Voltage-Mode PWM Controller
Primary-Side Regulation
Peak Power Mode
Low Power
