Texas Instruments TPS61170DRVT, Boost Converter, Step Up 1.2A Adjustable, 1200 kHz 6-Pin, SON, Преобразователь

Step-Up (Boost) DC/DC Converters (Integrated Switch), Texas Instruments

The Texas Instruments TPS61170 is a monolithic, high-voltage switching regulator with integrated 1.2-A, 40-V power MOSFET. The device can be configured in several standard switching-regulator topologies, including boost and SEPIC. The device has a wide input-voltage range to support applications with input voltage from multicell batteries or regulated 5-V, 12-V power rails. The device operates at a 1.2-MHz switching frequency, allowing the use of low-profile inductors and low-value ceramic input and output capacitors. External loop compensation components give the user flexibility to optimize loop compensation and transient response. The device has built-in protection features, such as pulse-by-pulse overcurrent limit, soft start, and thermal shutdown.

3-V to 18-V Input Voltage Range
High Output Voltage: Up to 38 V
1.2-A Integrated Switch
1.2-MHz Fixed Switching Frequency
12 V at 300 mA and 24 V at 150 mA From
5-V Input (Typical)
Up to 93% Efficiency
Output Voltage Reprogramming
Skip-Switching Cycle for Output
Regulation at Light Load
Built-in Soft Start

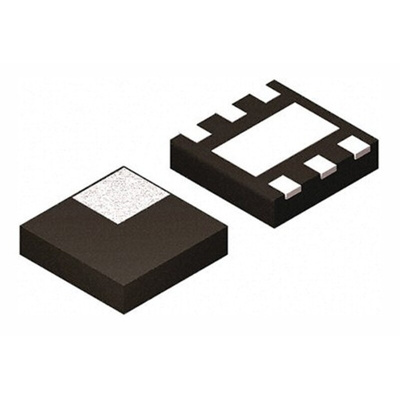

6-Pin, 2-mm ´ 2-mm QFN Package

DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments

The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
