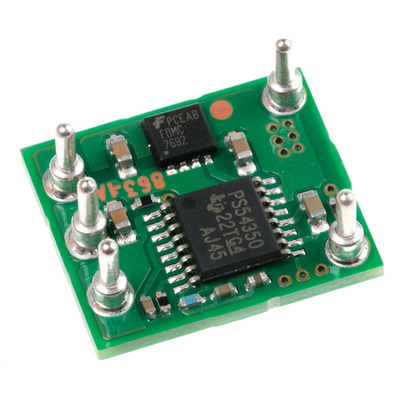

Texas Instruments PTH08080WAH, DC-DC Power Supply Module 2.25A 4.5 V Input, 300 Khz 5-Pin, DIP Module

Non-Isolated Step-Down (Buck) Power Modules, PTH Series, Texas Instruments

Texas Instruments DC-to-DC Converter Non-Isolated Step-Down Power Modules with adjustable output voltage.

The Texas Instruments PTH04000W series is a highly integrated, low-cost switching regulator module that delivers up to 3 A of output current. Occupying a small PCB area, the PTH04000W provides output current at a high efficiency and with minimal power dissipation, thereby eliminating the need for a heat sink. Their small size (0.75 inch ´ 0.5 inch), high efficiency, and low cost makes these modules practical for a variety of applications.

Up to 3-A Output Current at 85°C
3.3-V / 5-V Input Voltage
Wide-Output Voltage Adjust (0.9 V to 3.6 V)
Efficiencies Up To 94%
On/Off Inhibit
Under voltage Lockout (UVLO)
Output Overcurrent Protection (Nonlatching, Auto-Reset)
Over temperature Protection
Ambient Temperature Range: -40°C to 85°C
Point-of-Load Alliance (POLA)™ Compatible
Surface Mount Package

Non-Isolated Power Modules, Texas Instruments

Non-Isolated Power Modules are supporting designs which require superior EMI protection and thermal performance, high output current, high output voltage and more. The family of SIMPLE SWITCHER® power modules provides an all-in-one power solution to meet extreme operating conditions or simply a standard feature set, in a small, easy-to-use package.

Integrated shielded inductor
Precision enable, soft-start, and tracking for sequencing
Best-in-class thermal performance
Pin-to-pin compatible modules for different load currents
Easy-to-use packaging
Passes EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard
