Fluke-719 30G, Fluke -850mbar to 2.4bar 719 Pressure Calibrator, Калибратор давления

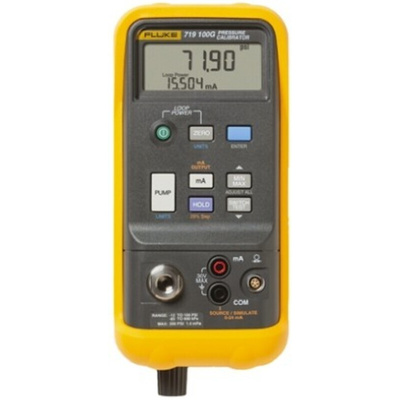

Fluke 719

Revolutionary electric pump technology enables user to calibrate and test pressure devices quickly and easily with one hand.

Built-in electric pump
Best in class pressure measurement uncertainty of 0.025%
Measure and source mA with best in class 0.015% accuracy
Relative humidity 95% (-10 → 30 °C), 75% (30 → 40 °C), 45% (40 → 50 °C), 35% (50 → 55 °C)
Precision pressure adjust vernier
Variable release rate bleed valve for easy pressure adjustment
Ideal performance for high accuracy transmitter calibration
Programmable pump limit eliminates over-pressurization and allows user to program target pressures for pumping
Extended pressure measurement range with any of 29 700Pxx pressure modules
Source mA with simultaneous pressure measurement to test valves and I/Ps
Simulate mA signals to troubleshoot 4-20 mA loops
Test pressure switches with built-in switch test function
Power transmitters during test using 24V loop supply with simultaneous mA measurement
Proven cleanout ports reduce pump failures
Compact (210mm H x 87mm W x 60mm D) and lightweight (0.912kg)

Note

Warranty is 3 years (pressure calibrator), 1 year (pump)

Approvals

CSA

Standards

EN50082-1:1992 and EN55022:1994 Class B

Supplied with

NIST traceable certification, TL75 test leads, AC72 alligator clip set, push-fit connectors (1/8" NPT male connectors), translucent test hose, product overview manual (printed), user’s manual (CD-ROM in 14 languages), two 9V alkaline batteries, yellow holster

Note

Pump warranty is 1 year

Fluke 719 Electric Pressure Calibrator Data Sheet

Fluke 719 Pressure Calibrator with Electric Pump Users Manual
