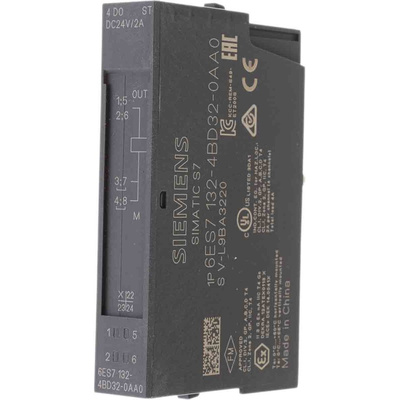

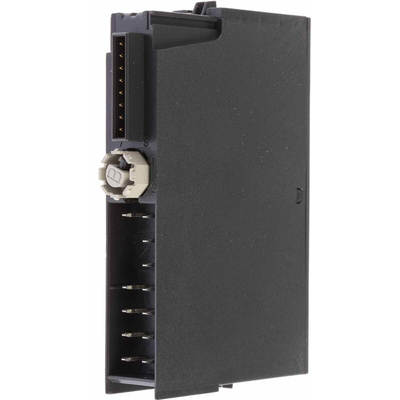

6ES7132-4BD32-0AA0, Siemens 6AG1 Series PLC I/O Module for Use with SIMATIC ET 200S Series, Digital, 24 V, Модуль

Siemens PLC I/O Module, 4 Digital Outputs, 2A Output Current Rating - SIMATIC Series - 6ES7132-4BD32-0AA0

Looking for a reliable way to manage your industrial processes? This Siemens PLC I/O module delivers instructions between your control device and your equipment. With its four digital outputs, it controls up to four appliances at once to give you convenient system management. As the unit has a low 120μs maximum output delay, it achieves efficient process control through fast signalling. Built-in reverse voltage and short-circuit protection minimises the risk of damage from electrical faults. By achieving switching frequencies up to 1,000Hz, this I/O module provides effective system control in demanding applications. Use it to integrate more machines into your automated manufacturing setup.

Features & Benefits

• Front-facing LED status indicators for quick diagnostics
• Supports parallel switching for redundant machine control to minimise disruption from output failure
• Compact dimensions of 15 (W) x 81 (H) x 52mm (D) for easy mounting in crowded control cabinets
• Power loss of 1.6W for minimal energy consumption

What cable lengths can I use this I/O module with?

To maintain reliable signalling, you can use this module with shielded cables up to 1,000m or unshielded cables up to 600m.

Datasheet

Manual - ET 200S Distributed I/O System 4DO DC24V/2A ST Digital Electronic Module
