6ES7138-4CA01-0AA0, Siemens PLC I/O Module for Use with ET200S Series, Current, Potential, Voltage, 24 V, Модуль

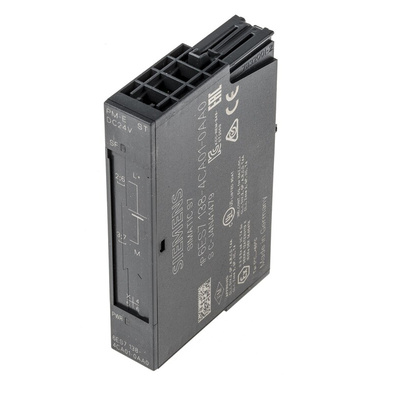

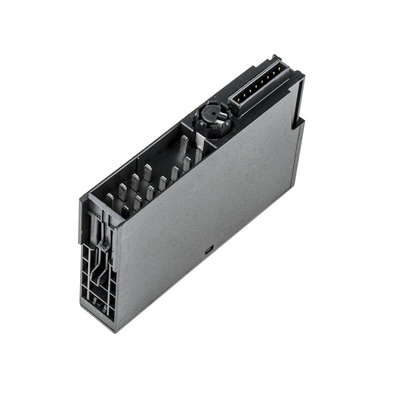

Siemens I/O Power Module For Use With ET200S Series, 24V DC - SIMATIC Series - 6ES7138-4CA01-0AA0

Monitor the current, potential and voltage in an I/O (input/output) interface with this power module from Siemens. It connects an industrial field device with a PLC (programmable logic controller) from the ET200S series, making it simple to assemble a complete system. Galvanic isolation keeps the rated load voltage and backplane bus separated to prevent interference, giving you smooth data transfer and enhanced electrical safety. Use this power module in your industrial automation applications.

• Low power loss of 0.1W for efficient operation
• Protection against reverse polarity for enhanced electrical safety
• Light weight of 35g to minimise strain on your system
• Compact dimensions of 81 (height) x 15 (width) x 52mm (depth) to maximise space in a modular I/O set-up

How can I determine the module's operating status?

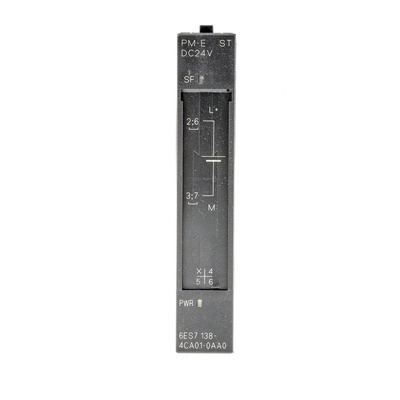

This unit features green and red LED (light-emitting diode) signals, making it simple to know its operating status at a glance. The green light indicates the rated load voltage, while the red light indicates that a group error has occurred.

Datasheet

Instruction Sheet - 6ES7138-4CA01-0AA0
