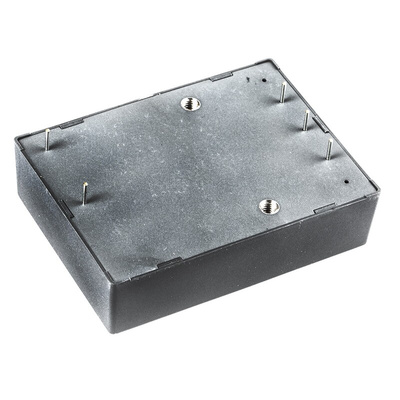

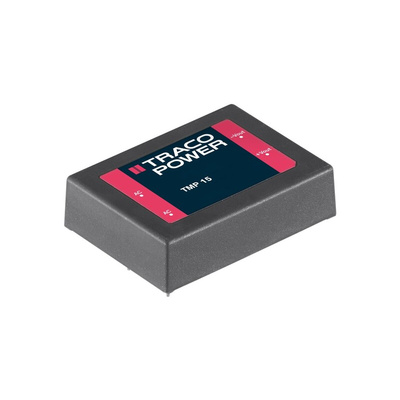

TRACOPOWER Switching Power Supply, TMP 15212, ±12V dc, 650mA, 15W, Dual Output, 120 → 370 V dc, 85 → 264, Источник питания

Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series

4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Ultra compact and low profile design
Universal 85-264Vac input
Fully encapsulated offering protection against pollution and dust
Short circuit, overload and over temperature protection
3kVac input / output isolation
Protection Class II
EM Ccompliance to EN 55022, level B, FCC Part 15 level B

Note

Manufacturers part numbers with a 'C' suffix denote chassis mounting types.
Multi output models TMPM 042xx, TMP 1021x, TMP 1521x and TMP 3021x have a common ground. Other multi output models have output 1 isolated from output 2/3 (floating)
Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos 666-2786 & 666-2780
De-rate by 3.5% per °C above 50°C. for 'TMP 10' models
De-rate by 2.5% per °C above 40°C. for other models
MTBF to MIL-HDBK-217F (25 °C).

Standards

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

Approvals

CB, UL recognised component for Canada & US

Traco Power Switching Power Supply, +60 °C Maximum Temperature, -25 °C Minimum Temperature - TMP 15212

This high efficiency and switching power supply provide a reliable solution for various industrial applications. With a wide input voltage range, encapsulated design, and dual output ±12 V, this product ensures stable and efficient power delivery for your electronic equipment.

Features & Benefits

• Ultra compact design ideal for space-critical applications
• Fully encapsulated for protection against pollutants and dust
• Dual output models with ±12 V power supply
• High efficiency of 79%
• Wide input voltage range of 120-370 V DC and 85-264 V AC
• Power rating of 15 W
• Over-temperature protection for added safety
• PCB mountable for easy installation

Applications

• Designed for use in automation, electronics, electrical, and mechanical industries
• Ideal for commercial and industrial electronic equipment
• Suitable for applications requiring a compact power supply with high efficiency and dual outputs

Can it handle a wide input voltage range?

Yes, this power supply can handle input voltages ranging from 120-370 V DC and 85-264 V AC.

Will it provide a stable power output for industrial control equipment?

Yes, this power supply is designed for industrial applications and offers a reliable and stable power output.

Is the compact design suitable for space-critical applications?

Yes, the ultra-compact design of this power supply makes it perfect for applications where space is limited.

Can it be easily mounted on a PCB?

Yes, it is PCB mountable for convenient installation.

Does it come with over-temperature protection?

Yes, this power supply is equipped with over-temperature protection to ensure safe operation in various conditions.
