TRACOPOWER Switching Power Supply, TMP 30112, 12V dc, 2.5A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

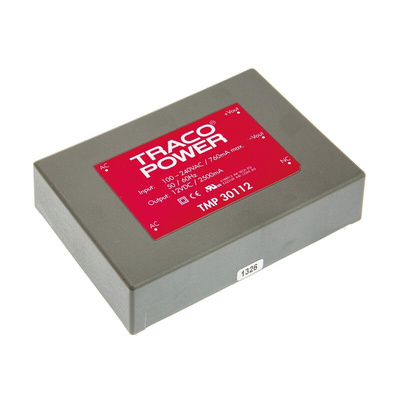

Traco Power Switching Power Supply, PCB Mount, 80% Efficiency - TMP Series - TMP 30112

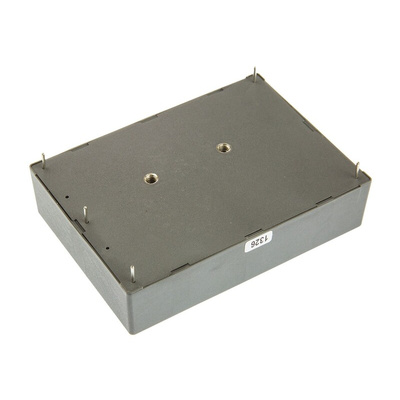

Swap AC for DC in your circuit using this switching power supply from Traco Power. It adjusts a broad input voltage range between 120 and 370V DC (or 85 and 264V AC) to a safe output voltage of 12V DC. As the unit has an efficiency rating of 80%, you can rest assured there'll be minimal heat waste during the conversion process. This means you won't need to add a heat sink to your board, so it also helps to free up space. Mount the device in a pinch by soldering its built-in pins to your PCB.

Features & Benefits

• Start-up time of 400ms for rapid operation
• Power rating of 30W to withstand high-power systems
• MTBF of more than 250,000 hours for durable performance
• Fully encapsulated to prevent dust contamination

Applications

• Computer peripherals
• Robotics and automation
• Security devices
• Medical technology
• Digital displays

What protective features does this SMPS have?

This SMPS comes with protections against short circuits and current overload, keeping it safe from damage in the event of electrical faults. As it also features over-temperature protection, it stays stable when the heat is on.

Switch Mode - Traco, TMP and TMPM Series

TMP 30112 Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TMP Series
