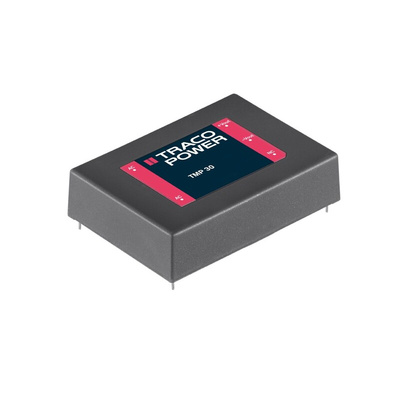

TRACOPOWER Switching Power Supply, TMP 30124, 24V dc, 1.25A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Traco Power Switching Power Supply, 1,500μF Maximum Capacitive Load, Plastic Housing - TMP Series - TMP 30124

Need to reduce the voltage from your energy source? Put this Traco Power switching power supply in charge. It turns inputs between 85 and 264V AC into a stable output of 24V DC. As it does its job with a high efficiency rating of 80% and only draws 30W, you can trust it to run economically. This is a handy option for applications where space is tight, as it has compact measurements of 88.9 (L) x 63.5 (W) x 21.7mm (D).

Features & Benefits

• Compliant with the EN 62368-1 safety standard to protect people and equipment exposed to energy sources
• Weighs just 211g to limit strain on your system
• 3,000V AC isolation voltage for protection against electrical surges
• Accepts DC inputs between 120 and 370V for versatility
• Wide operating temperature range between -25°C and +70°C for use in challenging conditions

Applications

• Telecommunications equipment
• Automotive industry
• Aerospace sector

How I do I mount this power supply?

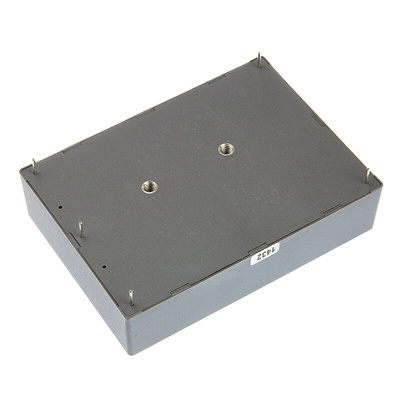

This unit is designed for through-hole mounting with solder pins to ensure a strong and stable connection to your printed circuit board.
